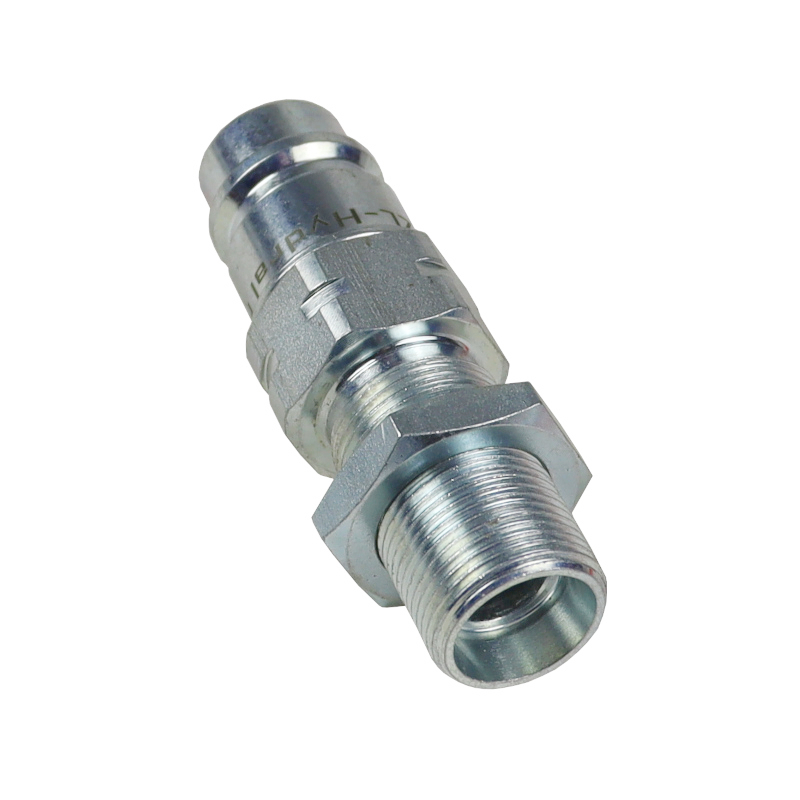

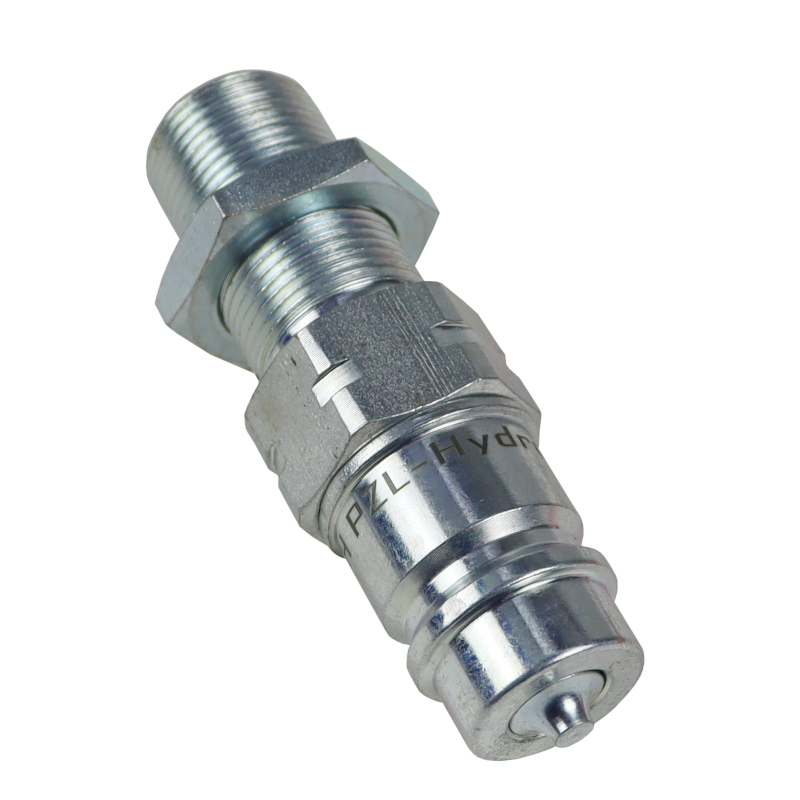

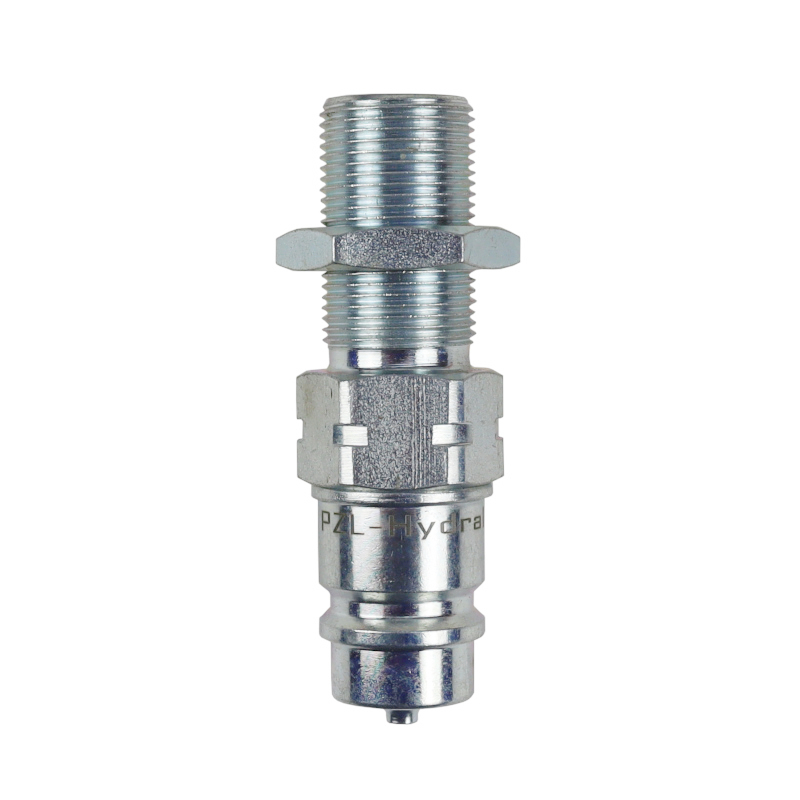

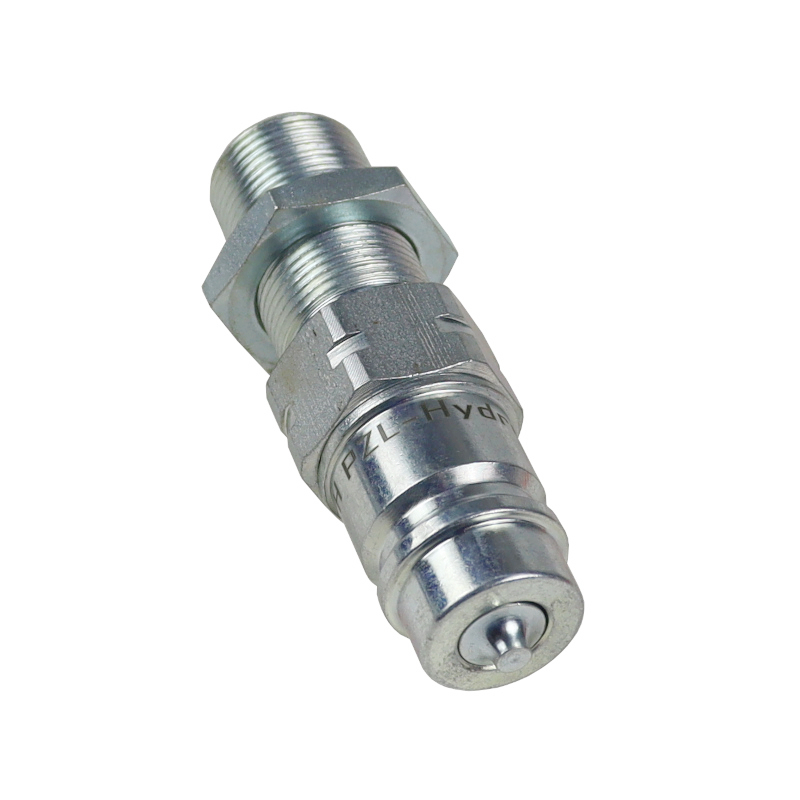

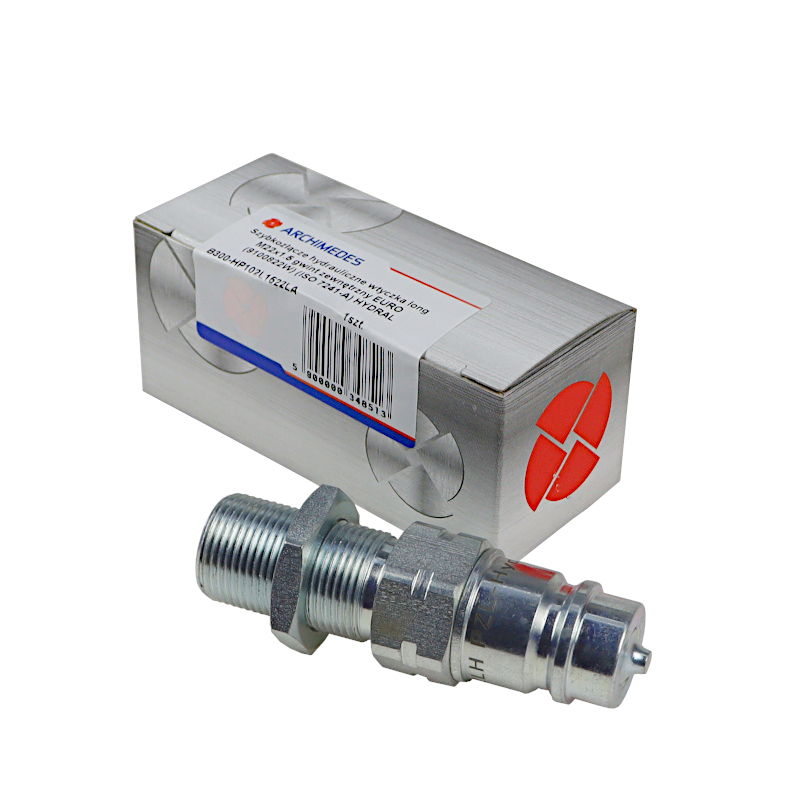

Hydraulic quick connector long plug M22x1.5 external thread EURO (9100822W) (ISO 7241-A) HYDRAL PREMIUM

Plug hydraulic connector long M22x1.5 HYDRAL PREMIUM

Hydral Premium quick connectors differ from others on the market in that they are dismantled and repairable.

Technical data:

✔️ Thread: M22x1.5 external long with locknut|| |✔️ Thread length 38mm
✔️ Valve type: IP with poppet valve
✔️ Standard: ISO 7241-1 series "A"
✔️ Pressure: up to 350 bar
✔️ Material: galvanized carbon steel|| |✔️ Operating temperature: NBR -20°C/+100°C
✔️ Flow: up to 200 l/min
✔️ Connection system: Push-Pull
✔️ Residual pressure - connection: impossible; disconnection: impossible
✔️ Seal: NBR, VITON
Application:
✔️

Universal use in hydraulics

Catalog number:✔️ HP102L1522LPH

Alternative names:

✔️

Quick connector

✔️Male connector
HYDRAL QUICK CONNECTORSThe highest-class HYDRAL hydraulic quick connectors are connectors in the Euro ISO 7241 Series A standard. We present quick connectors that meet the high requirements of customers from many industries. The use of HYDRAL solutions enables easy, safe and durable, and above all, instantaneous connection of several hydraulic lines of different sizes and applications at the same time.✔️

Using quick connectors

HYDRAL

you have proper flow of the working fluid and a guarantee of a safe connection.HYDRAL connectors- tailored to your needs.
