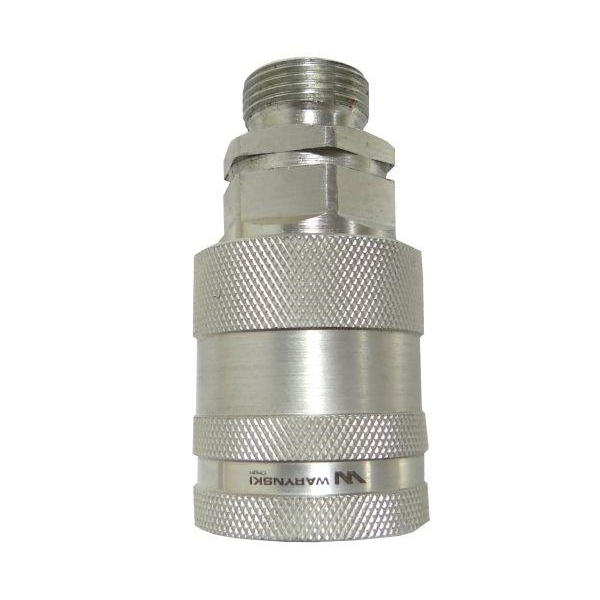

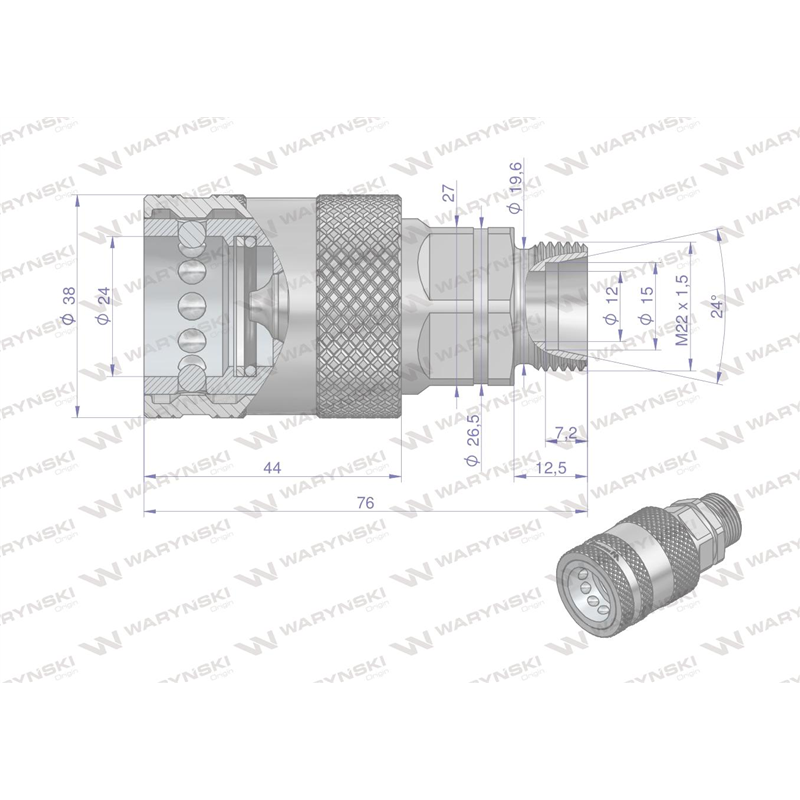

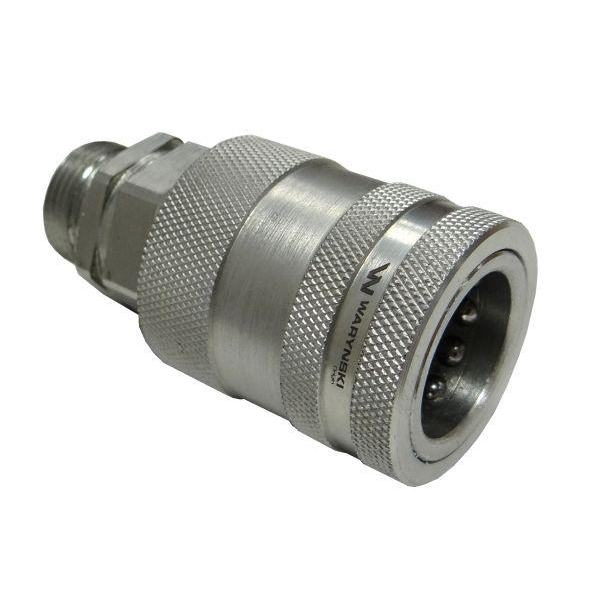

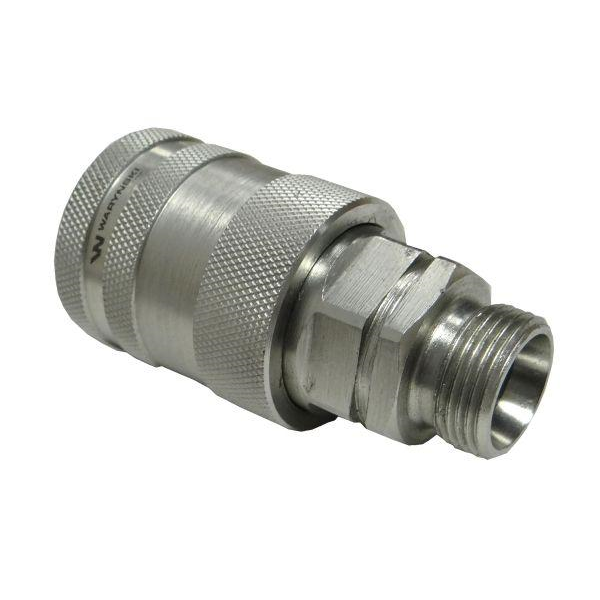

Hydraulic quick connector, socket M22x1.5, external thread EURO PUSH-PULL (9100822G) (ISO 7241-A) Waryński

Index: WIAM22MZ-PP

Please note

€9.60

(€9.44 szt)

VAT included
€9.60 gross
€7.81 net
  You can also order by phone

Tel: +48 570 501 200

  Shipping

Fast shipping



Safely packed

  14-day return form for contract withdrawal.

Returns address:
Hedwiżyn 119
23-400 Biłgoraj

  Complaint form

Fill out the form



GPSR Information: Product placed on the EU market before 13/12/2024

Description

Waryński hydraulic quick connector - EURO socket (PUSH-PULL). The most popular hydraulic quick connectors with a very wide range of applications. This type of quick coupler socket protects against cracking/breaking of the hydraulic hose and loss of hydraulic oil in the event of unintentional stretching - e.g. driving away the tractor without disconnecting the hydraulics from the connected machine (installation of the quick coupler socket to the body/housing in the tractor using the locking sleeve). The quick couplings are designed in accordance with the dimensional and quality requirements of the ISO 7241 Series A standard, which specifies in detail the characteristics and dimensions to enable compatibility of quick couplings produced by different manufacturers in accordance with this standard. Interchangeable with ISO-A quick connectors from other manufacturers such as: Parker, Faster, Stucchi, DNP, Tema and others.

Packing by::1

Product Details

WIAM22MZ-PP

Data sheet

Pakowanie po:
1
