Complete upper structure for the D-47 trailer with a tarpaulin

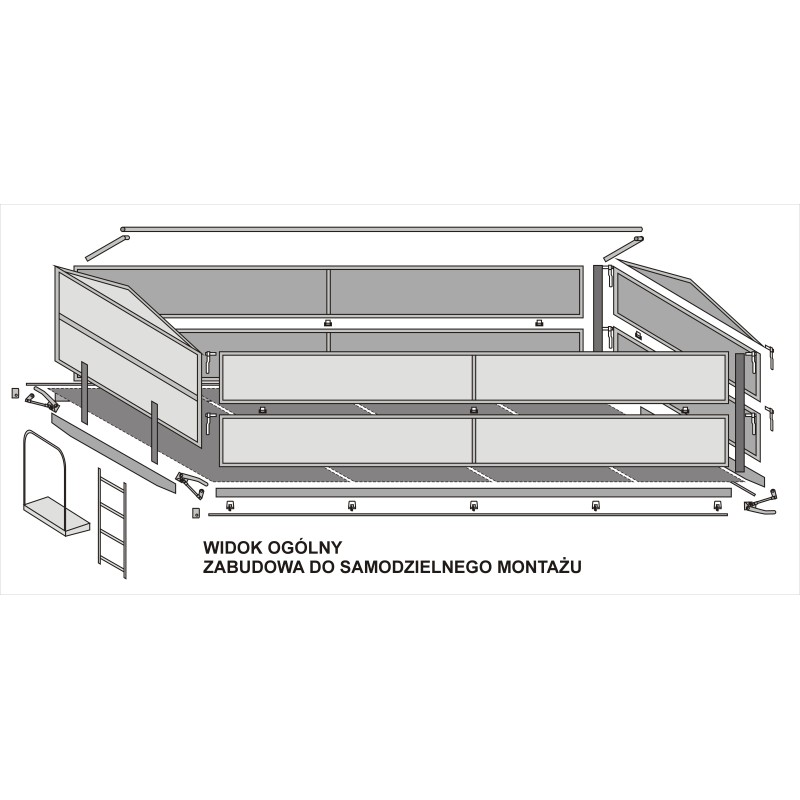

Complete upper body for the Autosan D-47 trailer with a tarpaulin

• internal dimensions of the box 404cm x 223cm

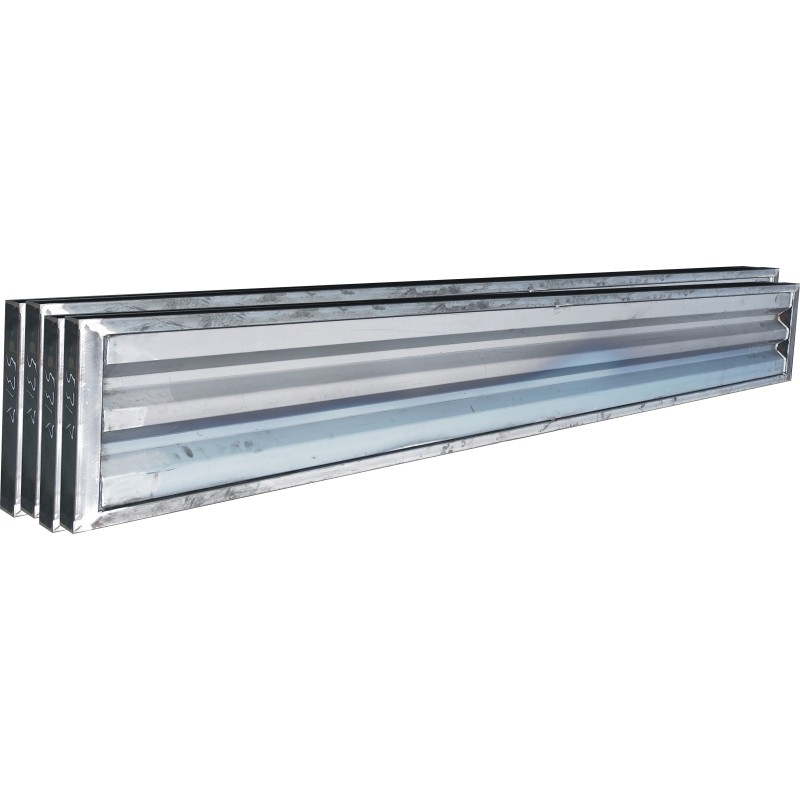

• sheet metal sides, 2 mm deep trapezoidal, side height 50cm + 30cm

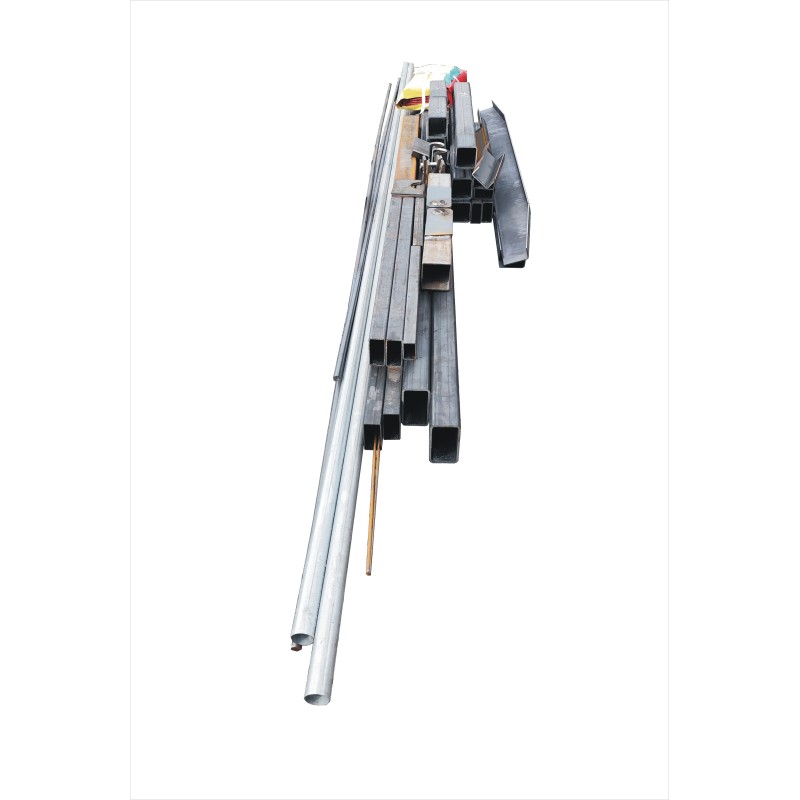

• side frame profile 60x40x2mm lower part of the side frame 60x40x3mm
• vertical profiles in the front and rear sides 60x60x3mm
• rear posts 100x50x4mm
• grain dump in the rear side
• main frame steel C-section 140mm reinforced

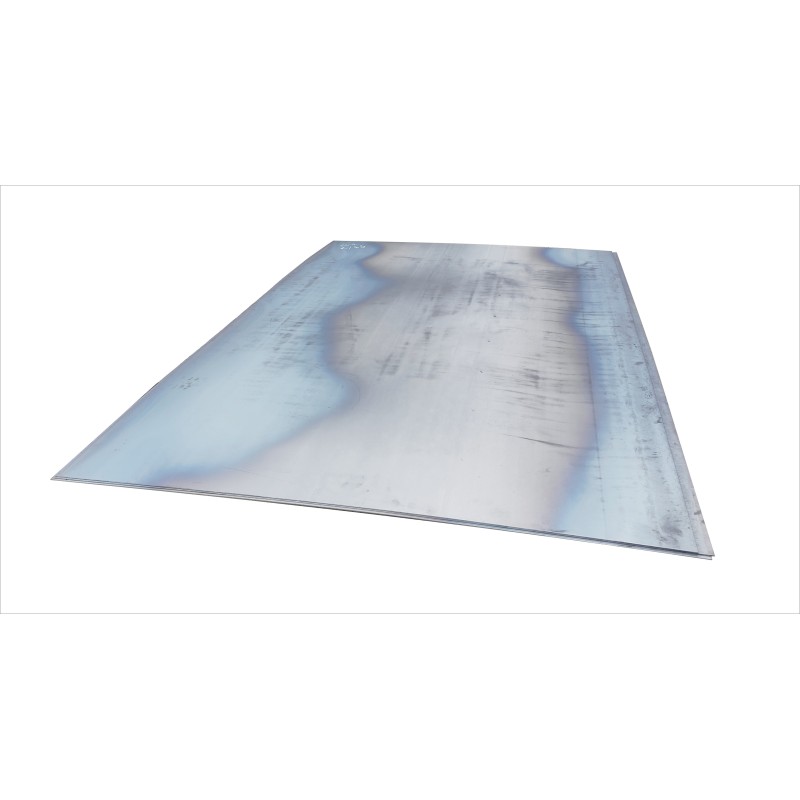

• floor sheet metal 3mm
• the structure has 4 tipping hinges (welded) and a tipping cylinder socket (welded)

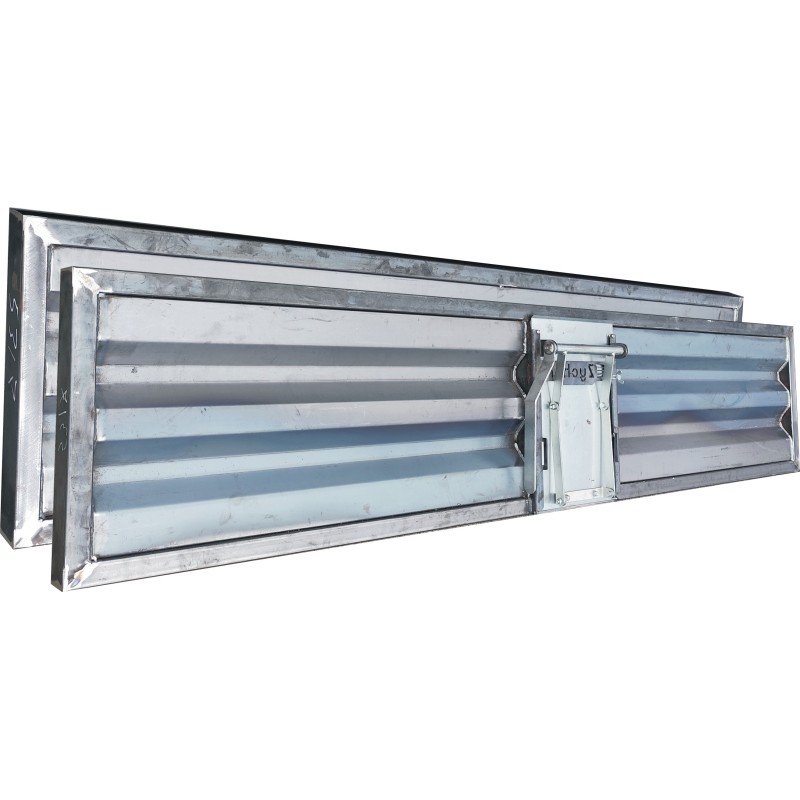

• bottom opening on three sides with central locking system
• the set includes a platform with a ladder, a foldable frame for the tarpaulin,
• triangles for tarpaulin

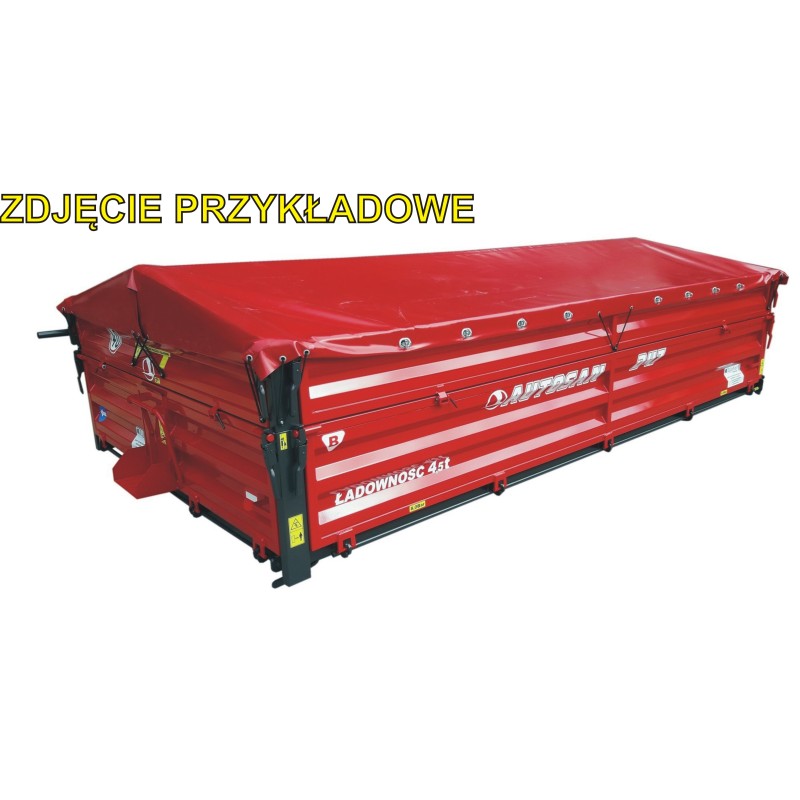

• tarpaulin with rolling system

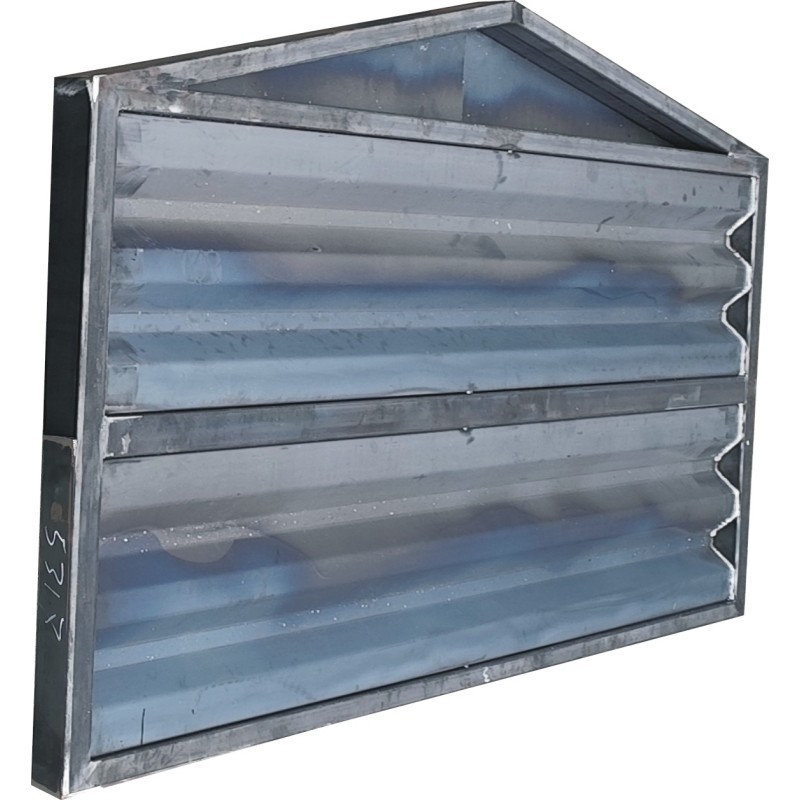

• hinges between side walls
• the central triangle that connects the sides and supports the tarpaulin frame
• sides and frame painted twice with epoxy primer and polyurethane topcoat

Please contact the trailer bodywork department at 570 321 500
