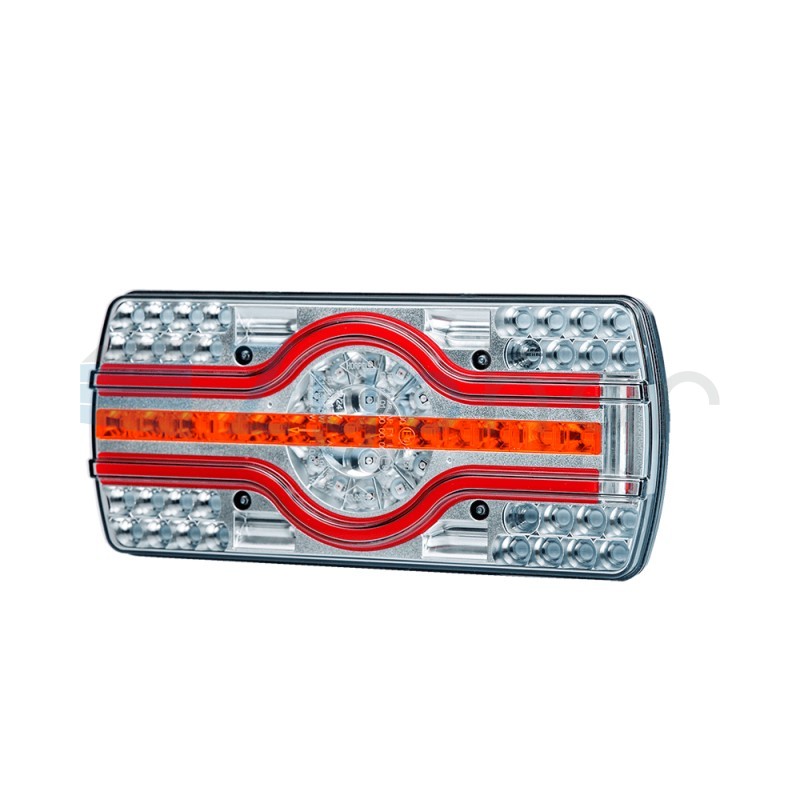

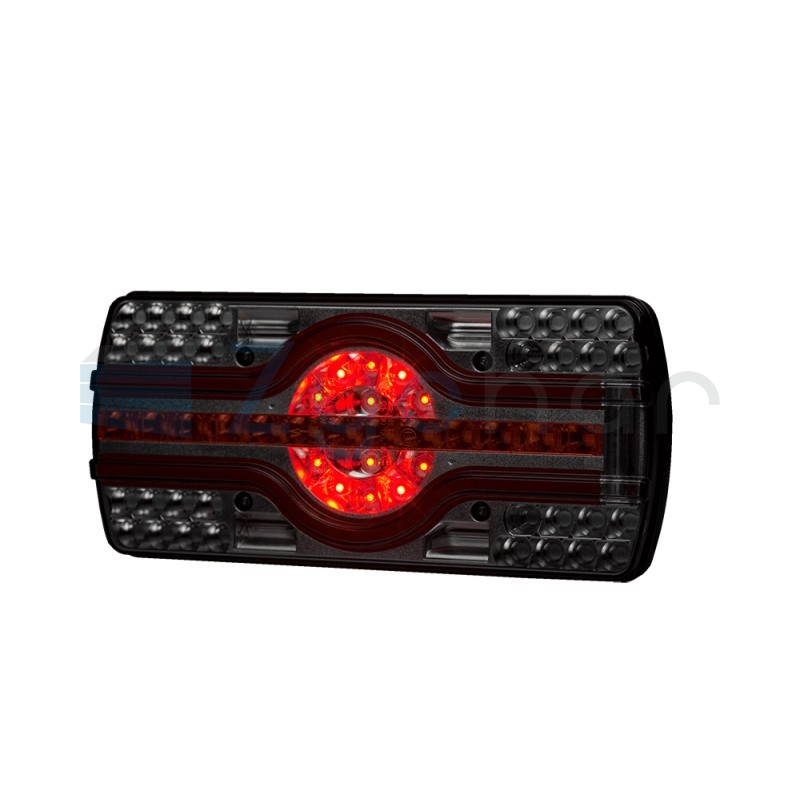

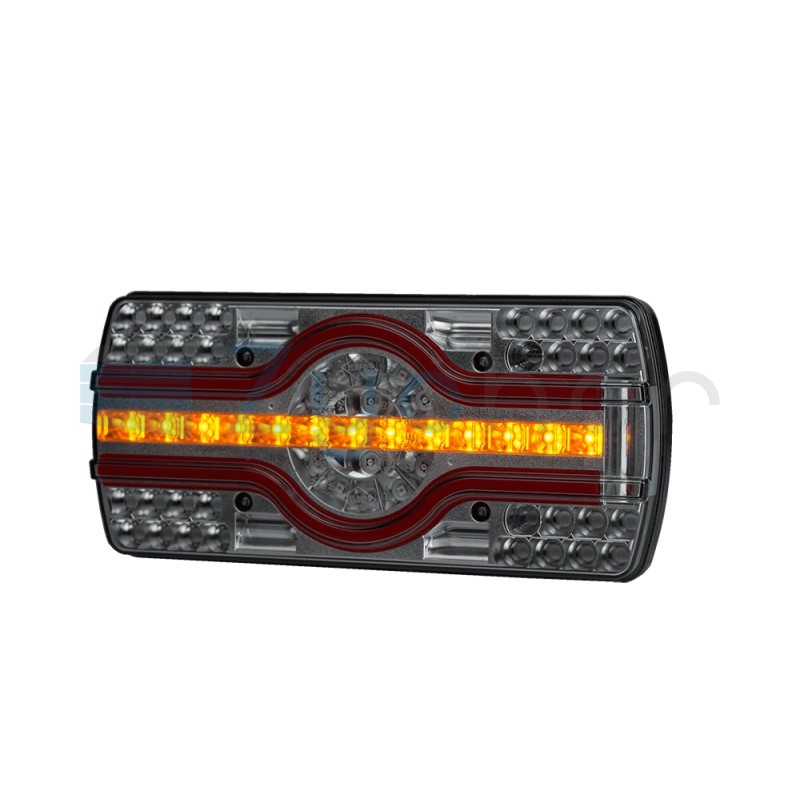

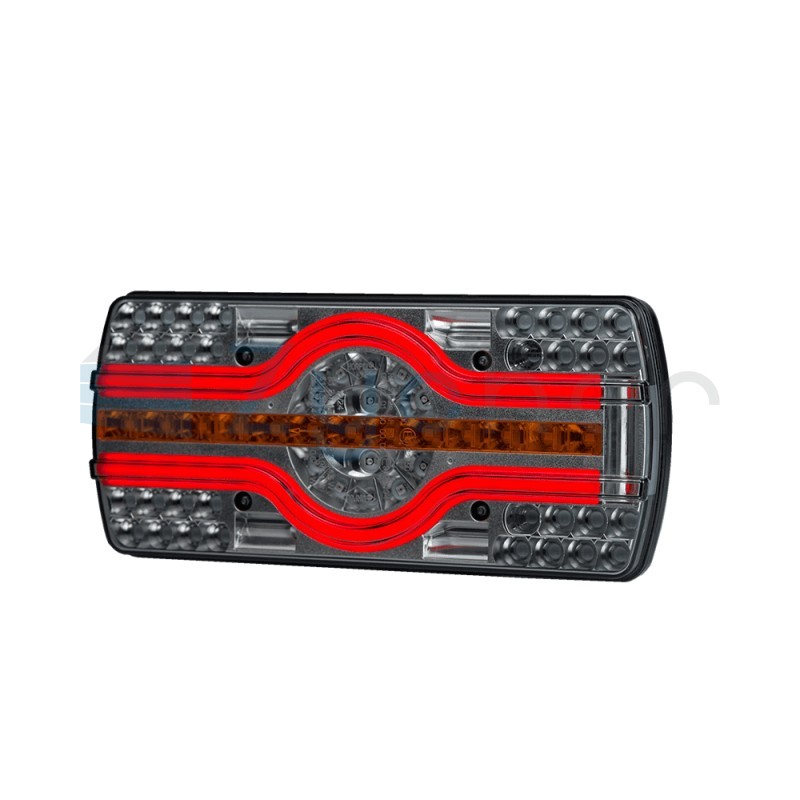

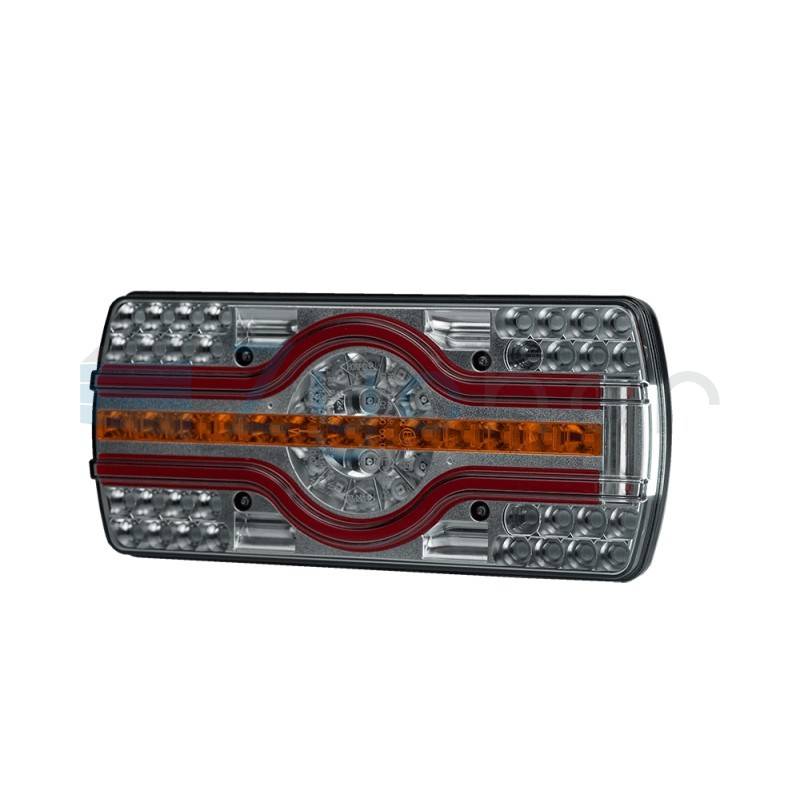

EMA LZD 2543 combination lamp

EAN: 5901958825439

Index: LZD 2543

Please note

Combination lamp - side license plate light

Lamp to be mounted on the left or right side of the vehicle

€37.36
VAT included
€37.36 gross
€30.38 net
  You can also order by phone

Tel: +48 570 501 200

  Shipping

Fast shipping



Safely packed

  14-day return form for contract withdrawal.

Returns address:
Hedwiżyn 119
23-400 Biłgoraj

  Complaint form

Fill out the form



GPSR Information: Product placed on the EU market before 13/12/2024

Description

EMA LZD 2543 combination lamp

Lamp functions/parameters

  • universal supply voltage 12/24 V
  • lamp power
    position lights (neon) 2.1/4.7 W
    direction indicator 2.4/5.4 W
    braking 2.7/6.0 ​​W
    license plate light 0.6/1.2 W
  • cable 5×0.5 mm2, length 2 m
  • Wire markings:
    white – mass
    black – positional (neon)
    yellow - turn signal
    red - braking
    blue - license plate light
  • Hermetic lamps IP 68

TECHNICAL DATA

  • Lamp category - rear combination
  • Rear position light - yes
  • Supply voltage - 12/24 V
  • License plate light - yes
  • Operating temperature range - from -30°C to +50°C
  • Cable - 5×0.5 mm2; cable length 2 m
  • Mounting side - universal
  • Brake light - yes
  • Rear indicator - yes
  • Diode lamp (LED) - yes
  • Tightness class - IP 68

Product Details

LZD 2543

Specific References

EAN13
5901958825439
