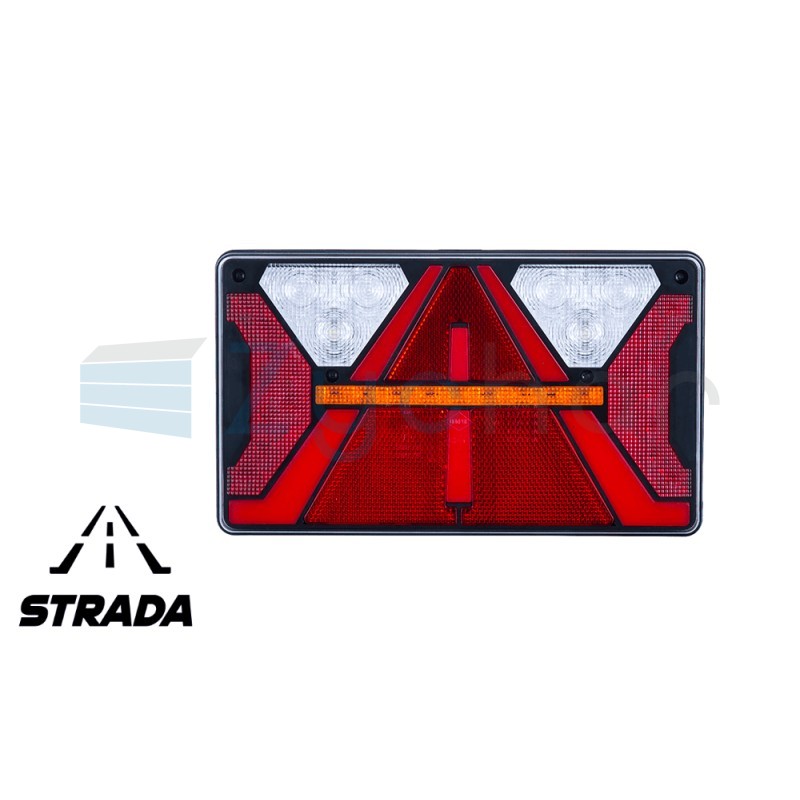

Strada LZD 2820 rear combination lamp - LEFT

Strada LZD 2820 rear lamp assembly - LEFT

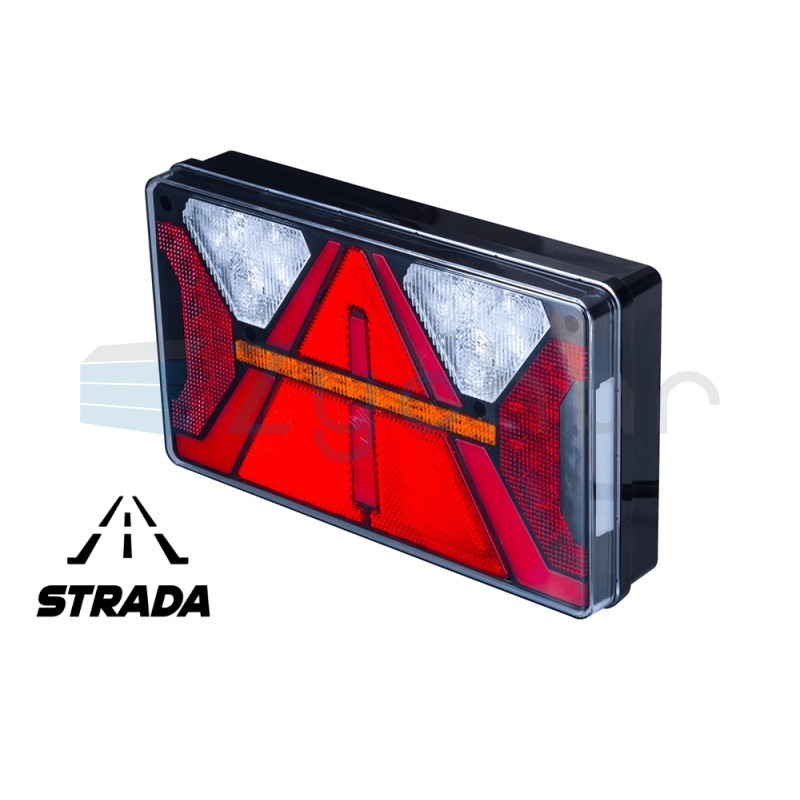

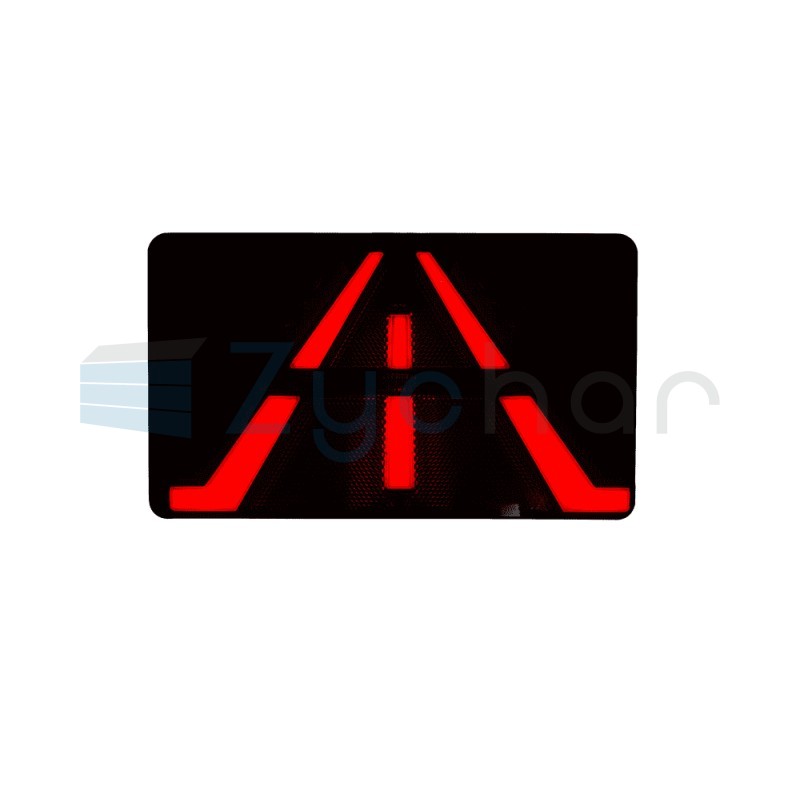

The modern STRADA LZD 2820 rear lamp assembly (left) belongs to the HOR 124 product group, contains 71 LEDs and requires a universal supply voltage of 12/24 V. The lamp combines all important lighting functions occurring at the back of delivery vehicles, as well as on trailers, tow trucks and agricultural semi-trailers. These are: NEON rear position light (2.2/5.5 W), brake light (2.8/3.6 W), reversing light (2.2/6.4 W), fog light (4.8 /5.5 W), rear turn signal (1.7/2.4 W), license plate light (0.5/1.2 W) and reflective triangle.

The lamp is made of high-quality materials with high resistance to mechanical damage. In transport, the aspect of protection against the ingress of water, mud and dust is also important. In this respect, STRADA lamps offer an appropriate tightness class of IP 68. The permissible operating temperature range is wide and is from -30oC to +50oC. The lamp has the required European E9 approval and is approved for use.

The STRADA combined lamp is a product with high aesthetic and functional values, which, thanks to the use of the best quality materials, will ensure a long service life.

TECHNICAL DATA

• Lamp group - HOR 124
• Number of LEDs - 71
• Lamp category - combined rear

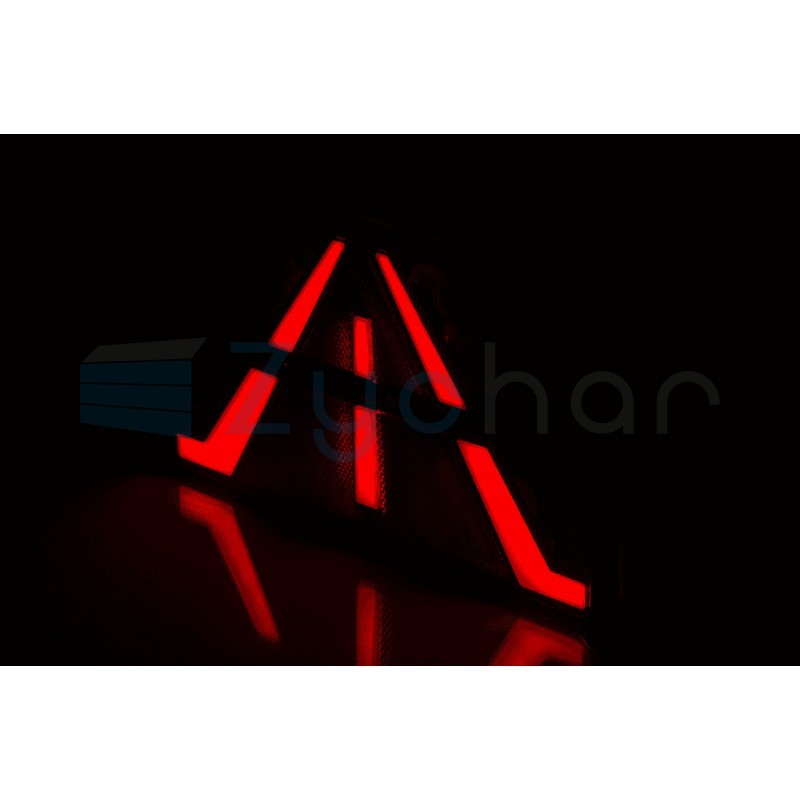

• Rear position light - yes
• Supply voltage - 12/24 V

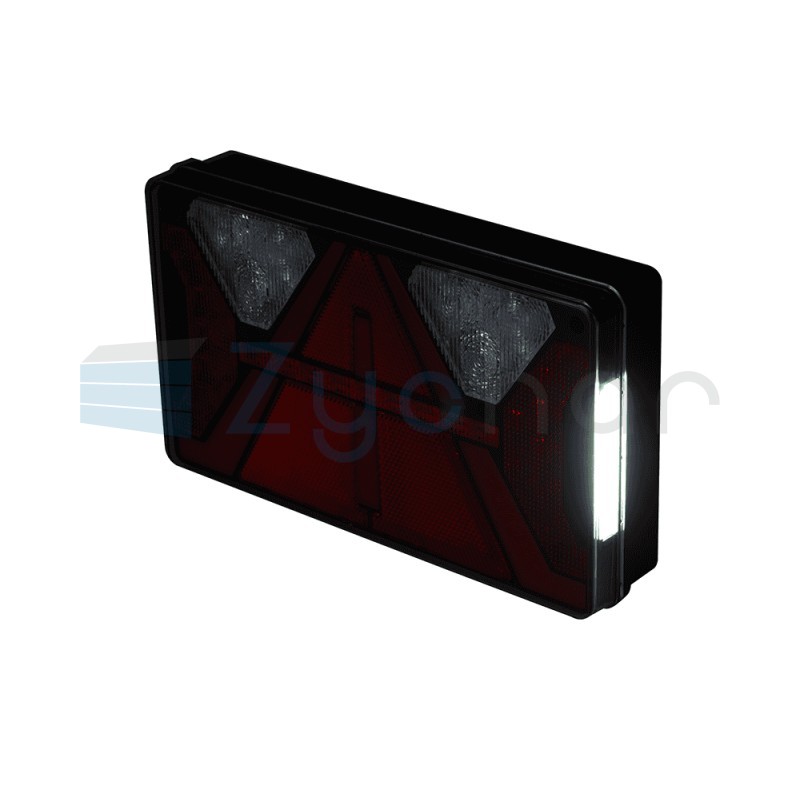

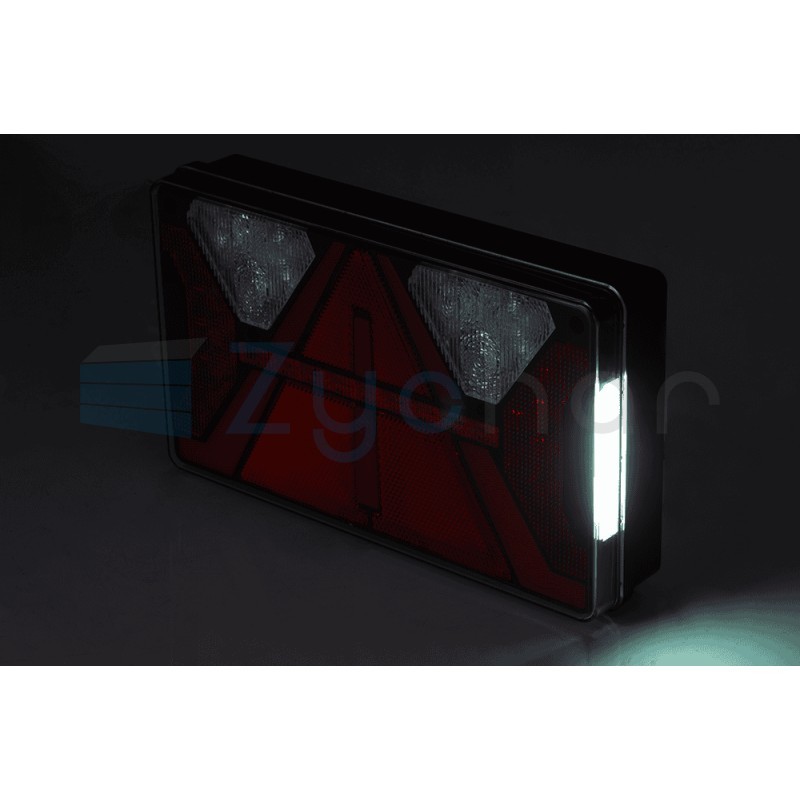

• License plate lighting - yes
• Reflector - yes| ||Operating temperature range - from -30°C to +50°C

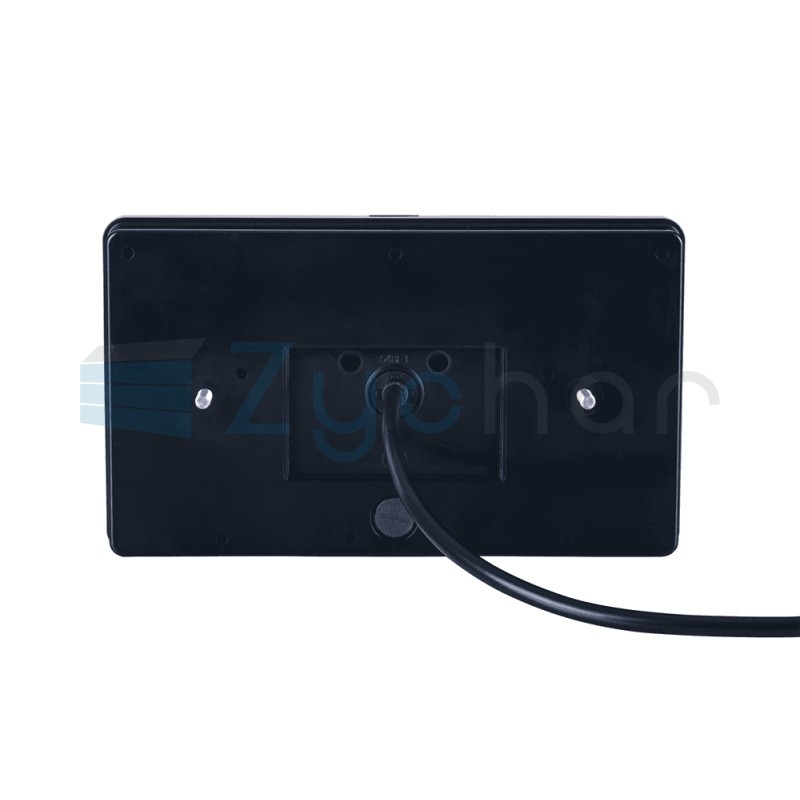

• Cable - 7×0.5 mm2; cable length 2 m
• Installation side - left

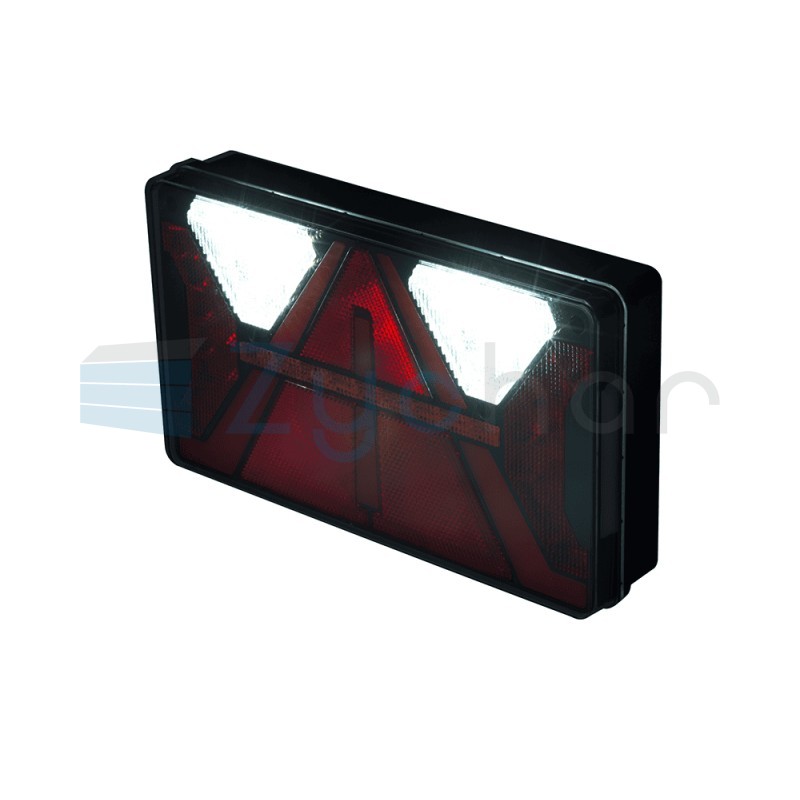

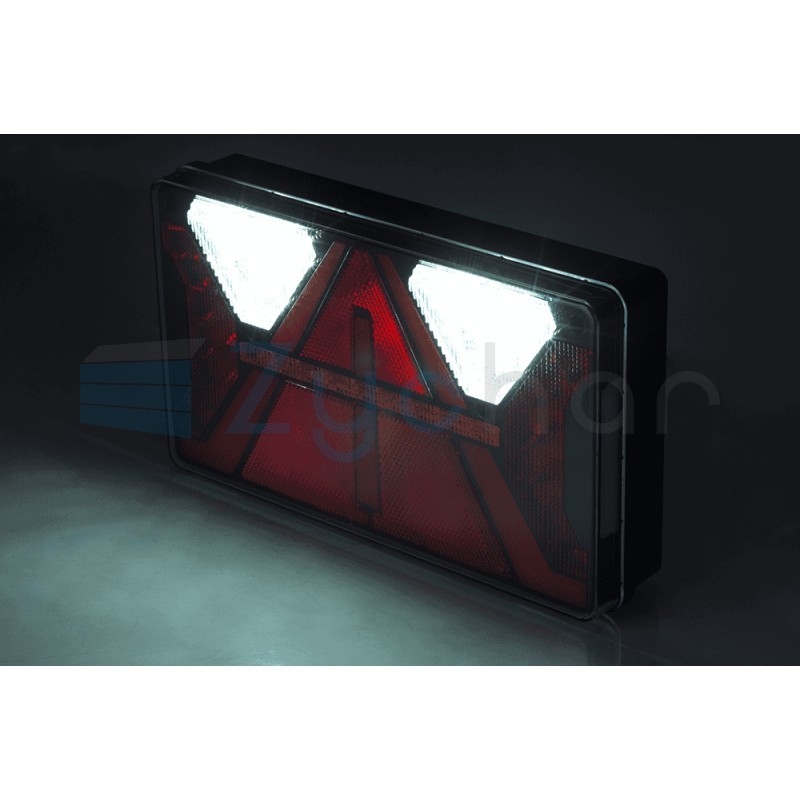

• Reversing light - yes
• Fog light - yes

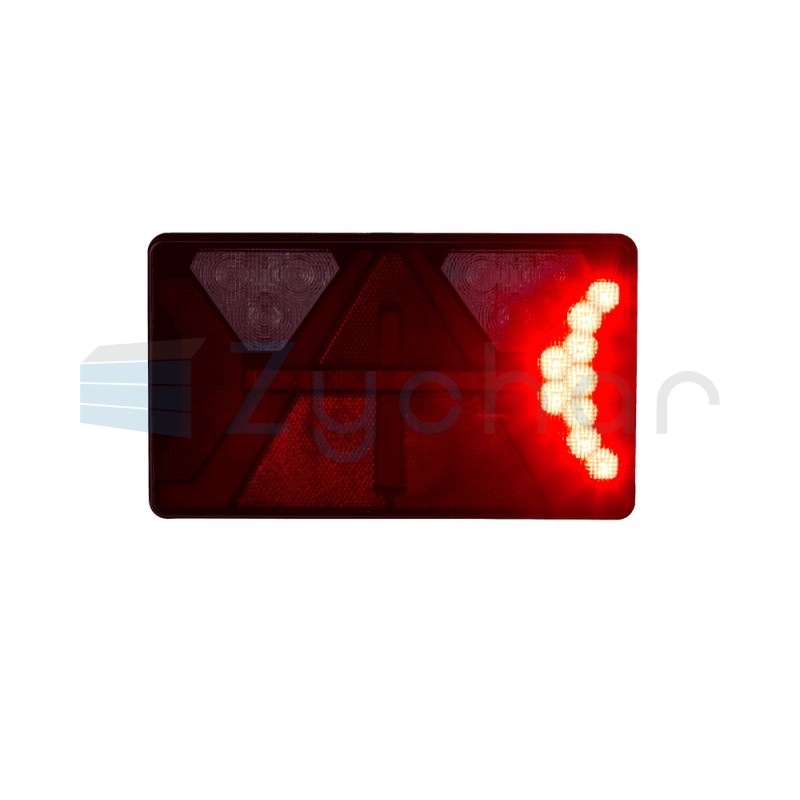

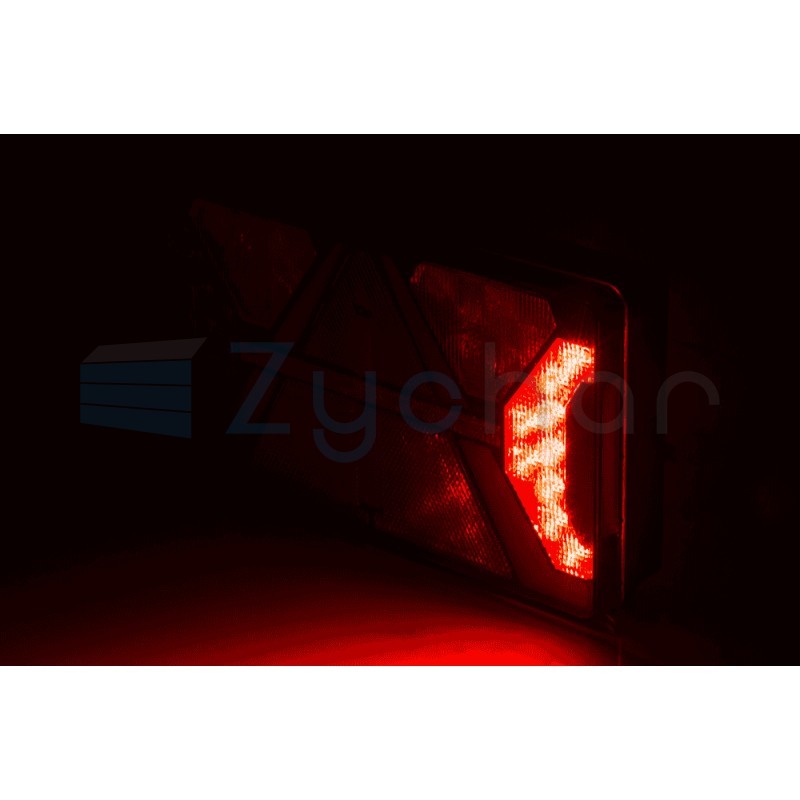

• Braking light - yes

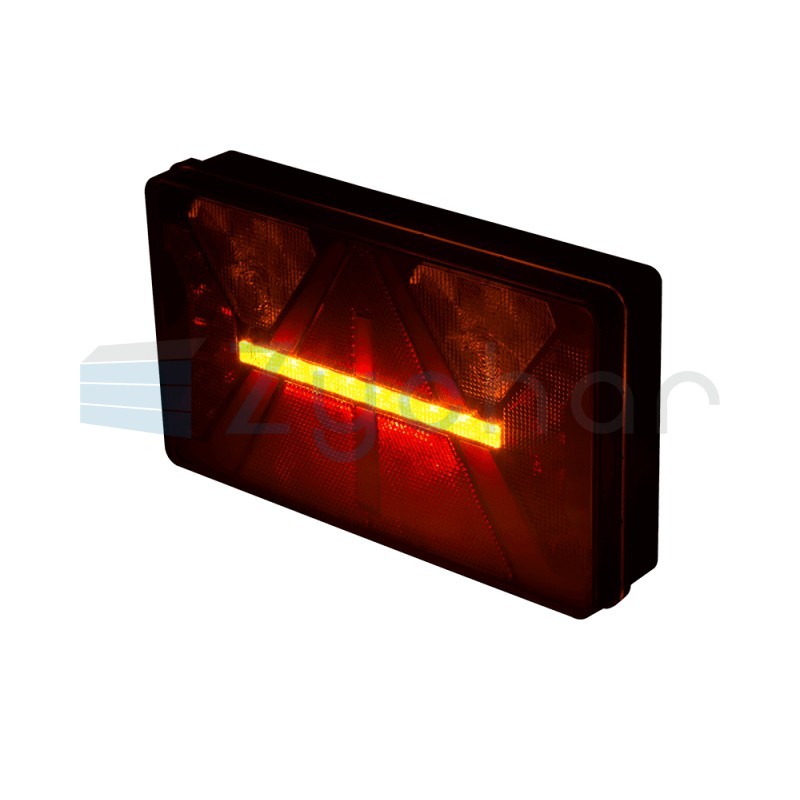

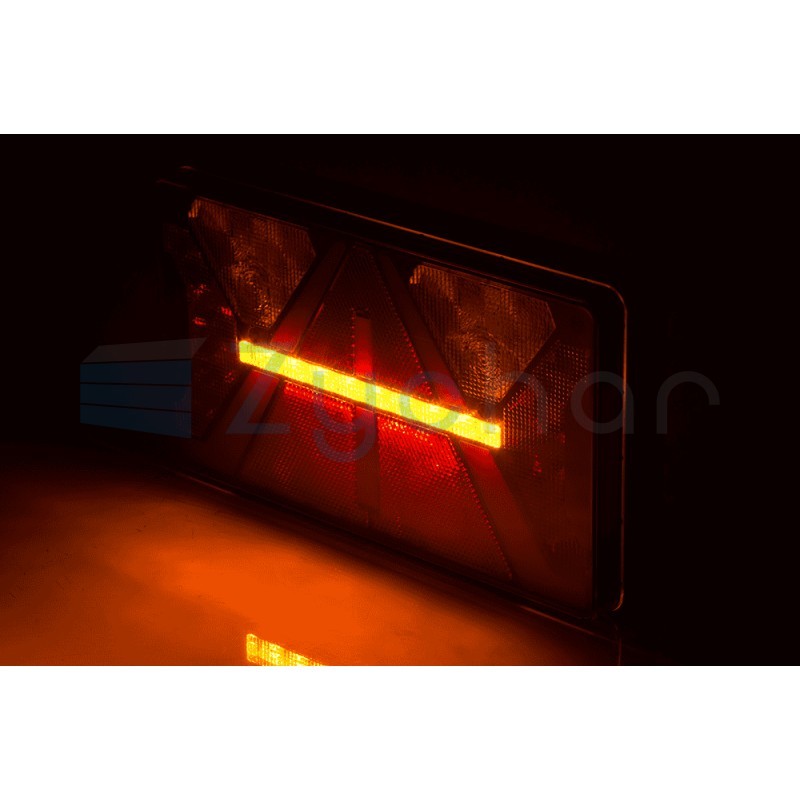

• Rear turn signal - yes
• Diode lamp (LED) - yes| ||Tightness class - IP 68
• Lampa diodowa (LED) - tak
• Klasa szczelności - IP 68
