Description

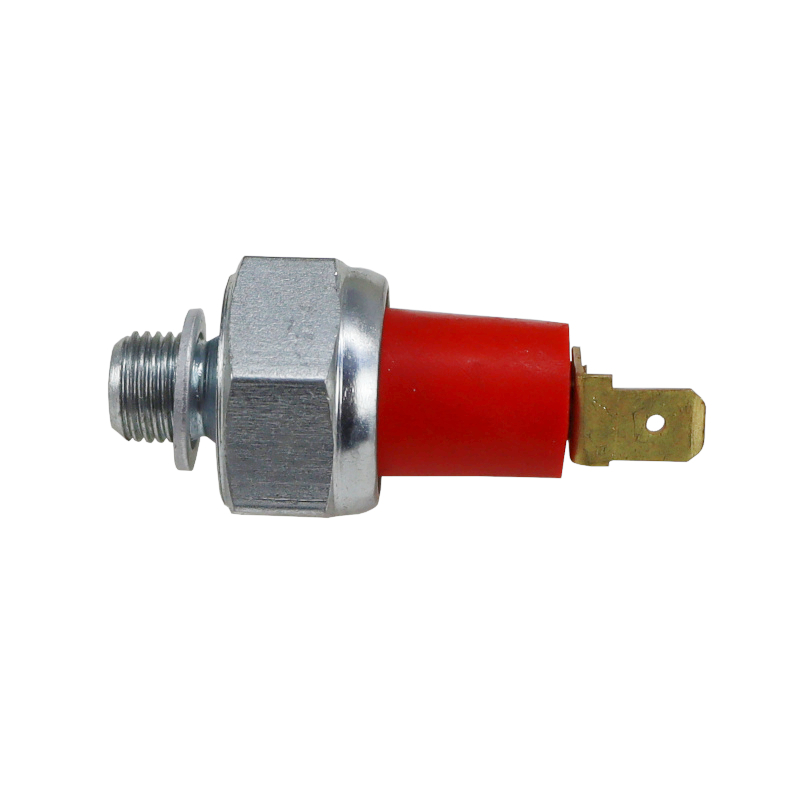

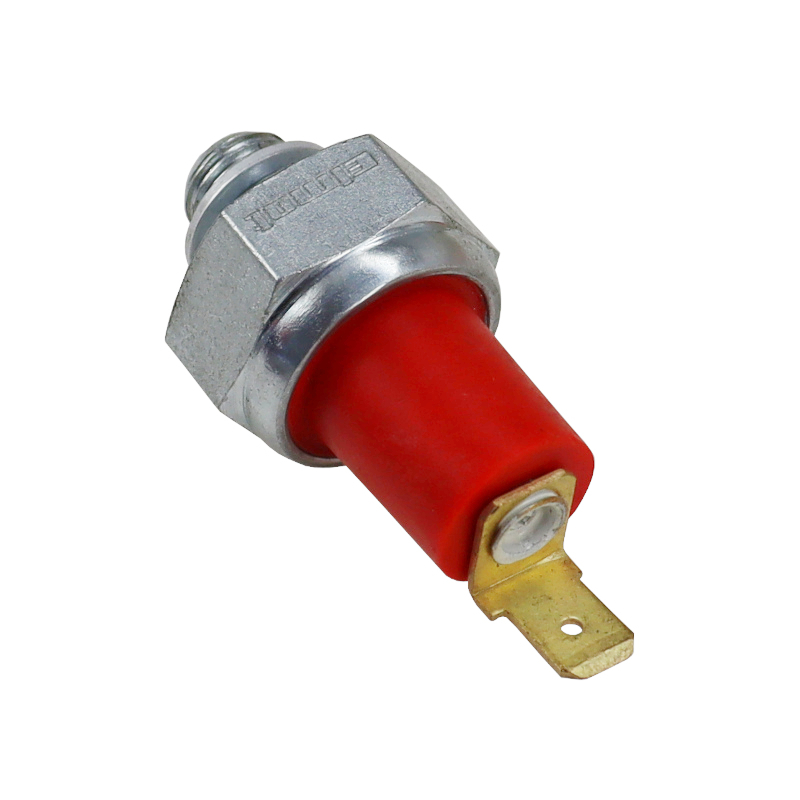

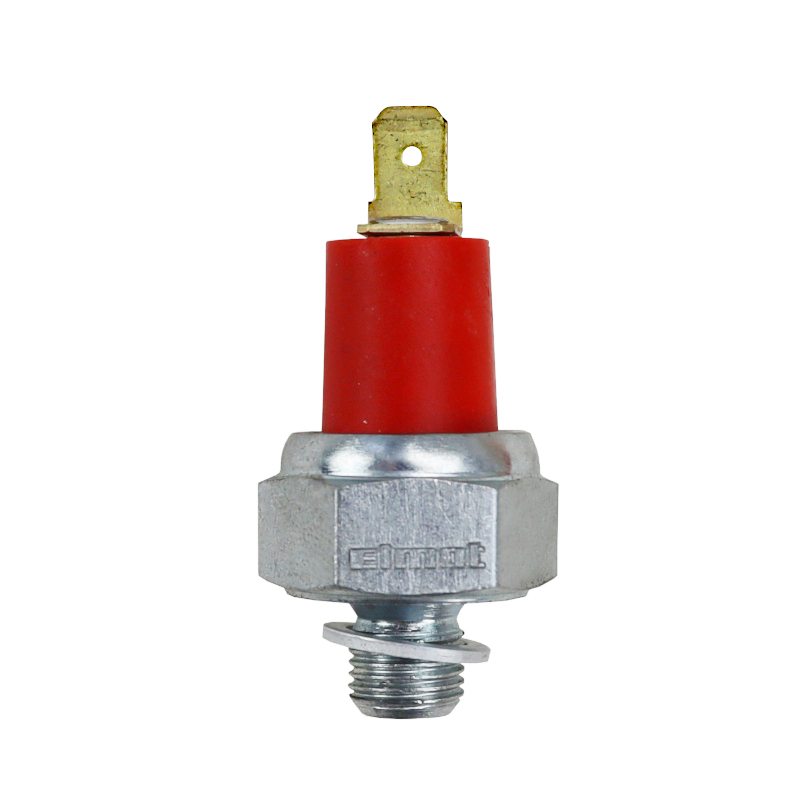

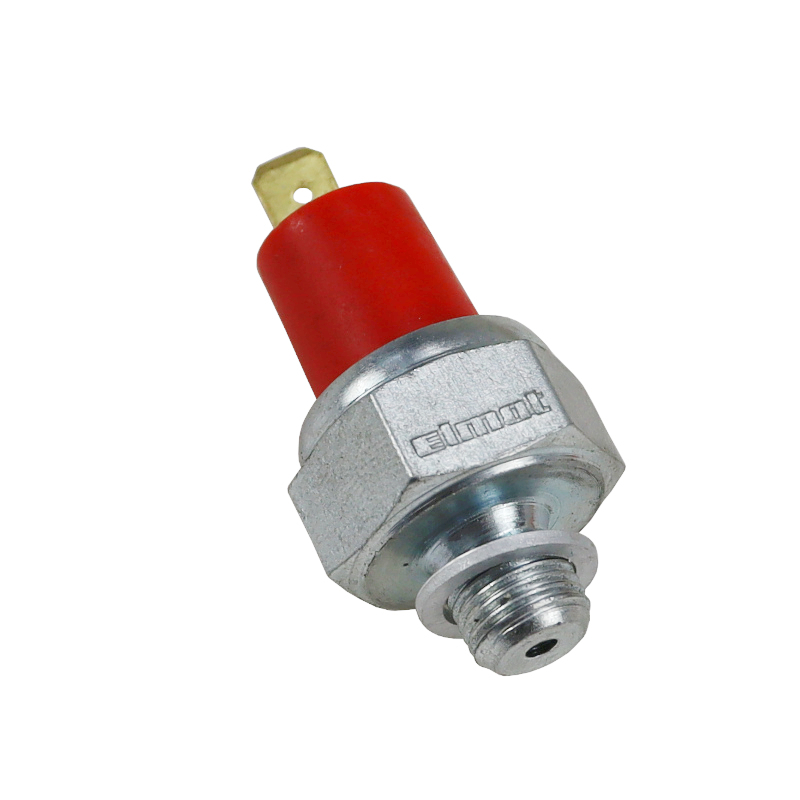

Oil pressure sensor C-330 C-360 ELMOT

The oil pressure indicator switch is designed to signal the pressure drop in the engine lubrication system.



Technical data:

✔️correct pressure range - 0.05 to 0.12MPa
✔️permissible maximum pressure - 1.5 MPa
✔️current load 12V/0.5A (bulb)


Construction:

✔️The switch has a hexagonal body, 6-angle 21
✔️M10x1 threaded end with a sealing washer
✔️Electrical connection with a 6.3x0.8 insert according to PN-76/E-06300/09
✔️The switch is adjusted and ready for operation

Catalog number:

✔️ 50766460EL
✔️ 955740
✔️ 50766460
✔️ 50657370
✔️ 503.11.00

Application:|| |✔️

C-330 tractors and derivatives✔️
C-360 tractors and derivatives
Product features:



✔️ 100% adjustment

✔️ 100% test
✔️|| | failure-free operation for years
Sensors –ELMOT
