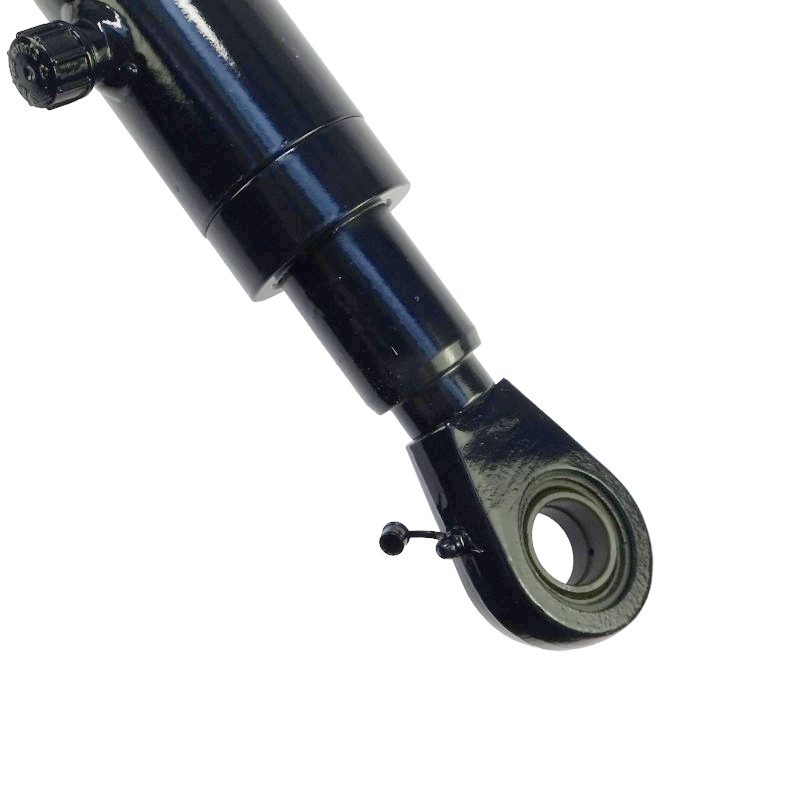

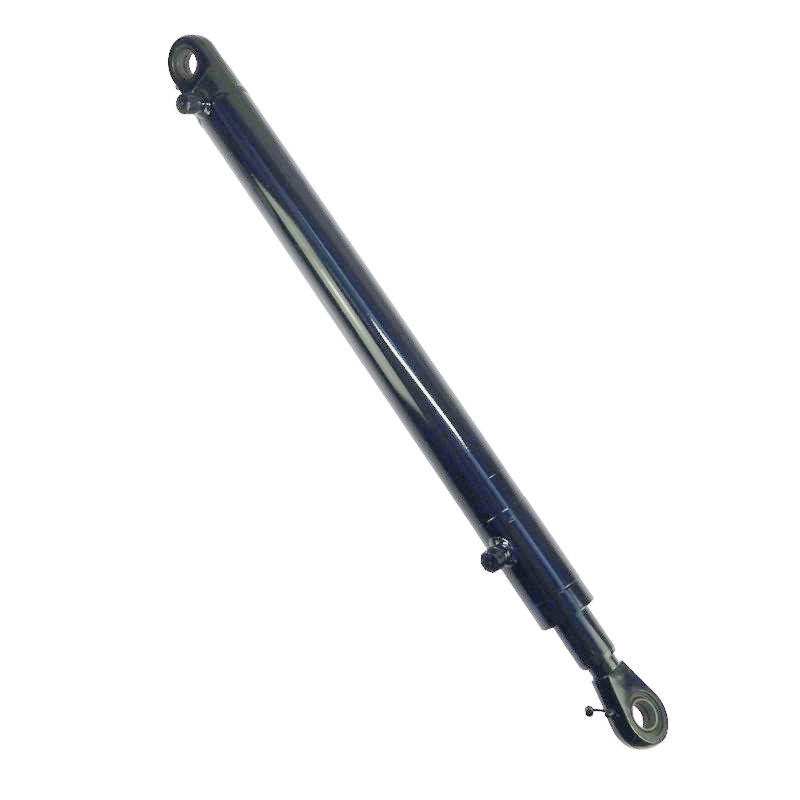

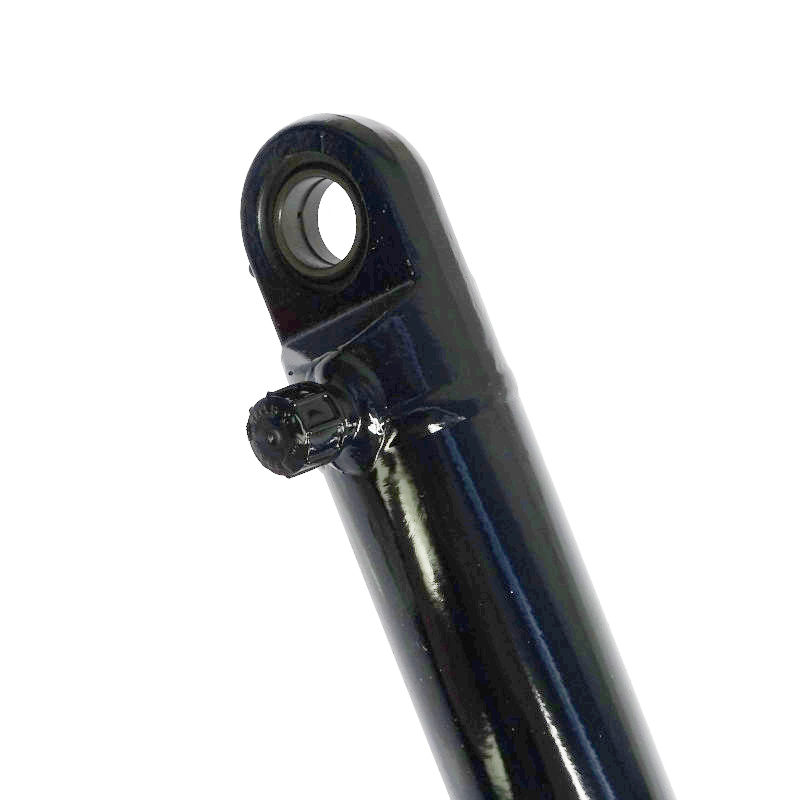

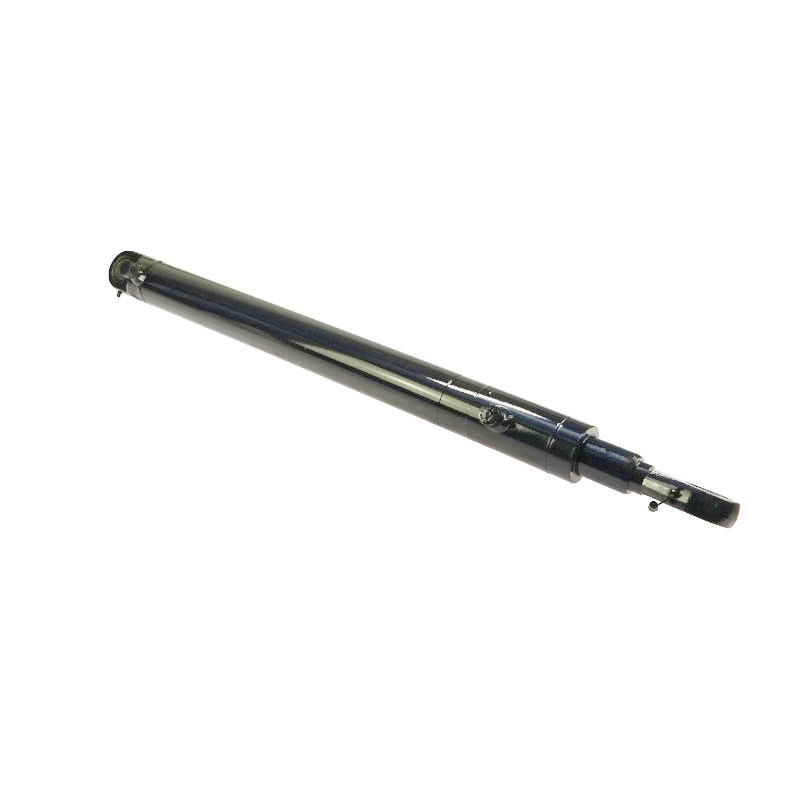

Hydraulic cylinder - single-sided actuator ARCHIMEDES

Single-sided hydraulic cylinder (cylinder) ARCHIMEDES

ARCHIMEDES hydraulic cylinders

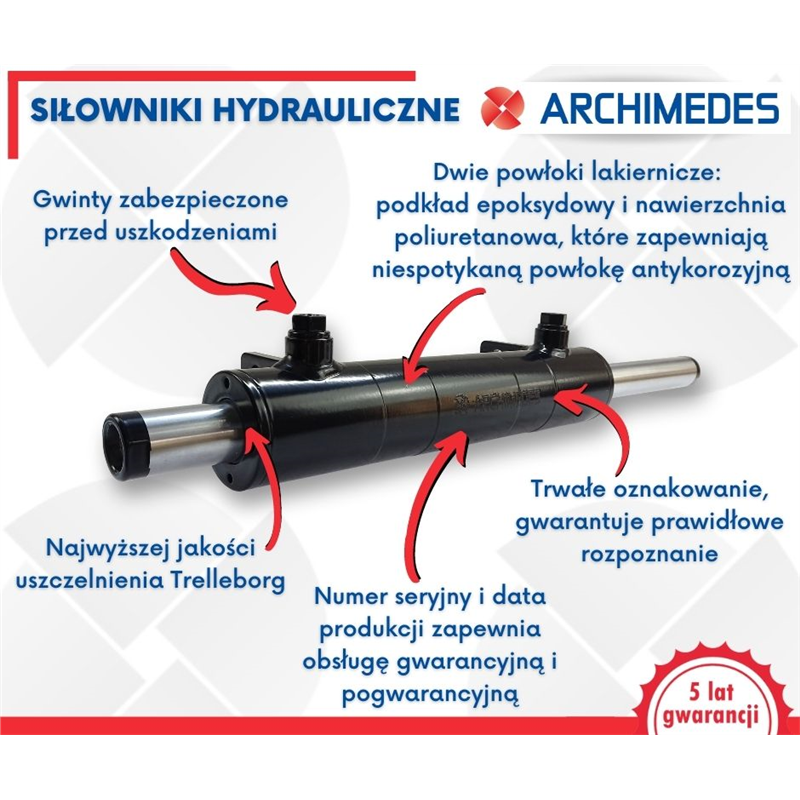

Did you know that there is no room for compromise in the production of Archimedes cylinders✔️ The bushings are made using the diamond-blasting method, the ball joints are forged, and the top-shelf seals are used – Trelleborg. We secure all threads to prevent them from being damaged during transport or storage. And that's not all;

Our cylinders are the only ones with two paint coatings - an epoxy primer and a polyurethane surface - this ensures an extremely durable and anti-corrosion coating not found in other cylinders!

At the end of the production process, we test the cylinder under a pressure of 250Mpa and if everything is in line with our highest requirements, we give it a serial number, stamp the production date and send it to the fascinating world of hydraulics.

We know almost everything about hydraulics, which is why we offer a 5-year warranty on all our products without hesitation. No worries.

Technical data:

✔️

Length range (between hole axes) - from 740 to 1240 mm✔️
Type - single-acting✔️
Actuator stroke - 500 mm✔️
Inner diameter of mountings - 25 mm✔️
Piston rod diameter - 40 mm✔️
Piston diameter - 60.3 mm✔️
Inlet - M16x1.5Application:

✔️

Hydraulic systems of agricultural machines and tractorsCatalog number:

✔️ CJ2F50/40/500A

Comparative numbers:

✔️ CJ2F50/40 /500

Product features:

✔️

Highest quality✔️
Manufacturer ArchimedesProducent Archimedes
