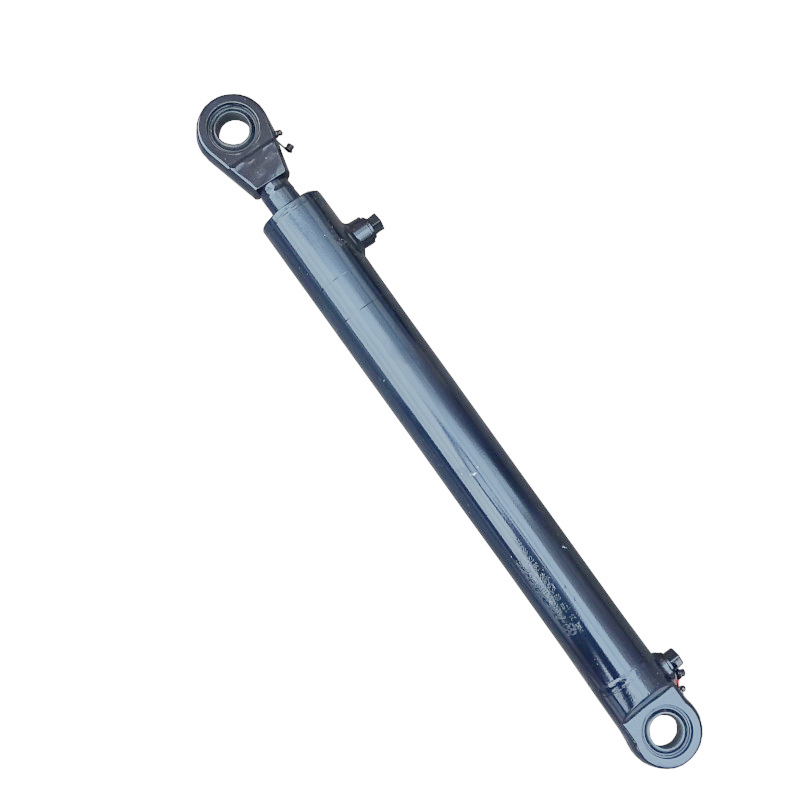

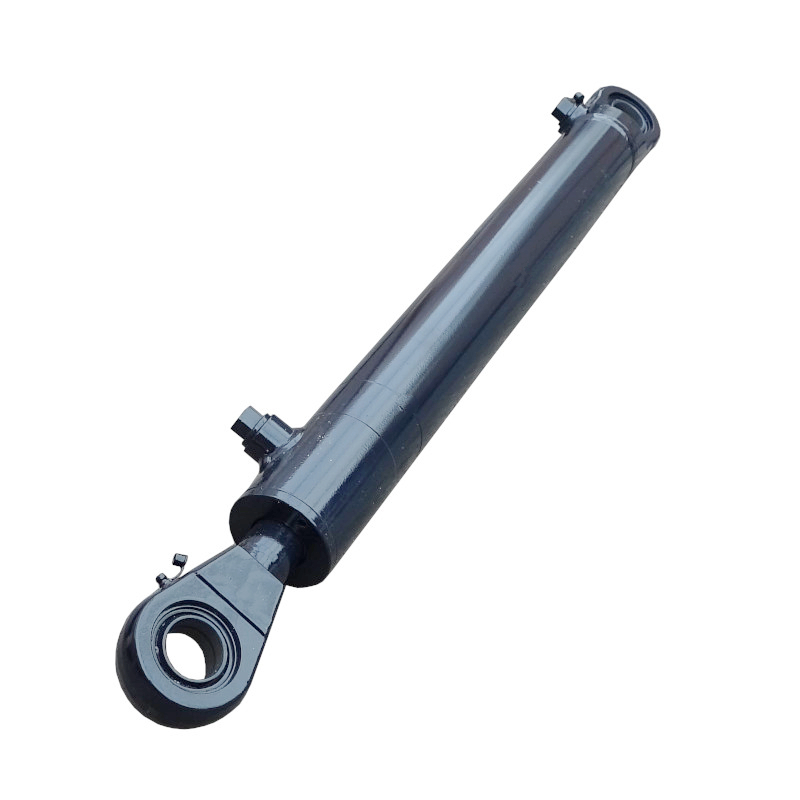

Hydraulic cylinder - double-acting actuator for TUR ARCHIMEDES Loader

Double-acting hydraulic cylinder of the Troll loader bucket, with a stroke of 500 mm. The cylinder is used in: among others: crocodiles, grabs, snow plows, chippers, for power steering, etc.

Technical data:

✔️ Cylinder type: double-sided

✔️ Cylinder stroke (advance) 500mm

✔️ Piston rod diameter 36mm

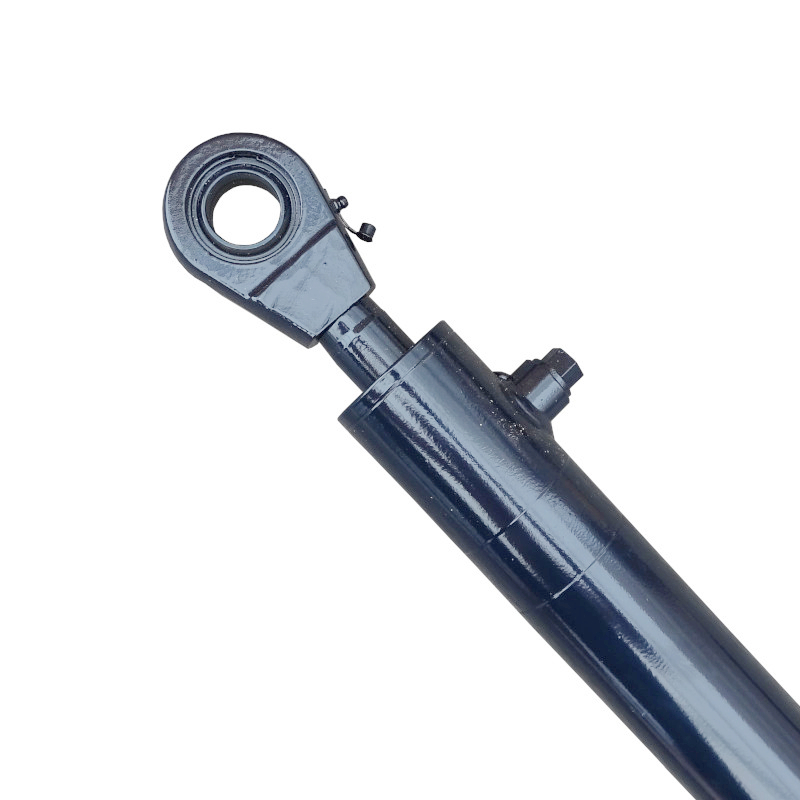

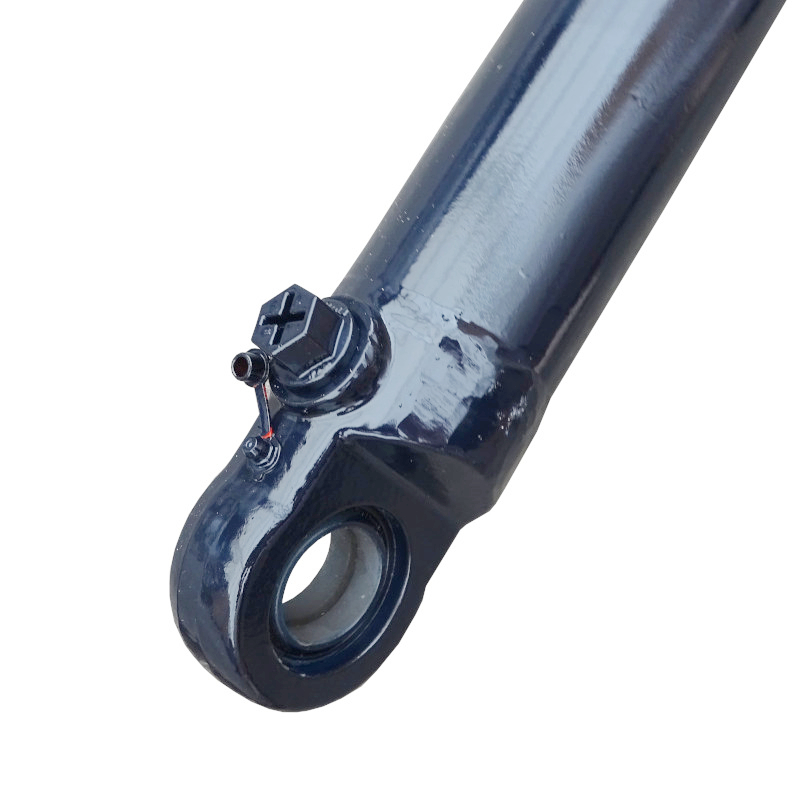

✔️ Ear diameter 35mm

✔️ Cylinder diameter (internal) 63mm

✔️ Cylinder diameter (external) 73mm

✔️ Length of the folded actuator 785mm

✔️ Length of the unfolded actuator 1285mm

✔️ Connection thread M22x1.5

Application:

✔️TUR loader - bucket lifting

Catalog number:

✔️ UCJ2F-63/36/500Z
✔️ 63/36/500

Product features:| ||✔️

Highest quality✔️
Polish productARCHIMEDES hydraulic cylinders

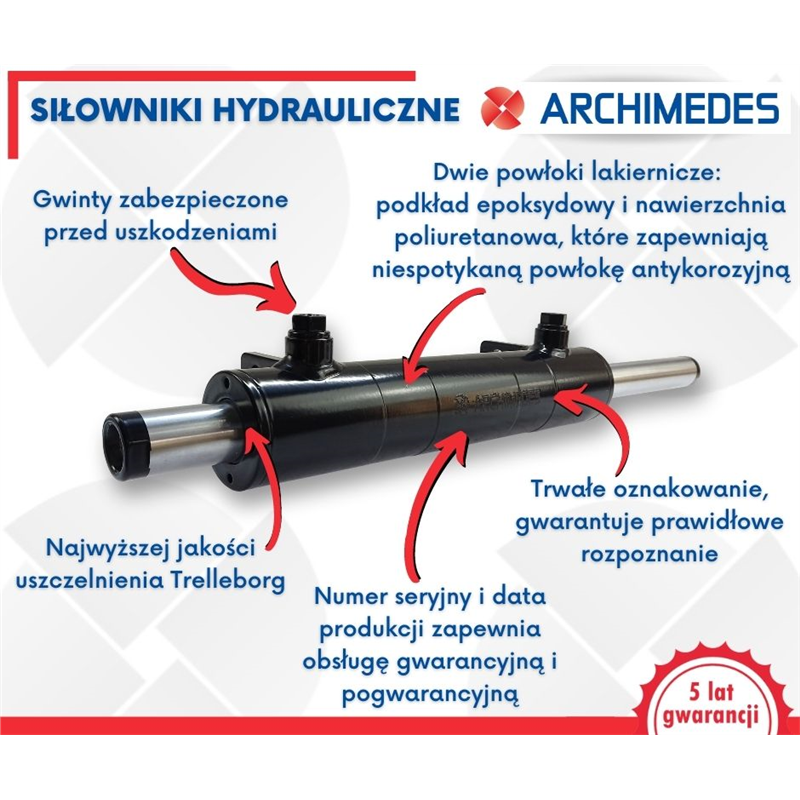

Did you know that there is no room for compromise in the production of Archimedes cylinders✔️ The bushings are made using the diamond-plating method, the ball joints are forged, and the sealants were from the highest quality - Trelleborg. We secure all threads to prevent them from being damaged during transport or storage. And that's not all;

Our cylinders are the only ones with two paint coatings - an epoxy primer and a polyurethane surface - this ensures an extremely durable and anti-corrosion coating not found in other cylinders!

At the end of the production process, we test the cylinder under a pressure of 250Mpa and if everything is in line with our highest requirements, we give it a serial number, stamp the production date and send it to the fascinating world of hydraulics.

We know almost everything about hydraulics, which is why we offer a 5-year warranty on all our products without hesitation. Without any worries

O hydraulice wiemy prawie wszystko, dlatego bez wahania na wszystkie nasze produkty dajemy

5 lat gwarancji. Bez żadnych obaw
