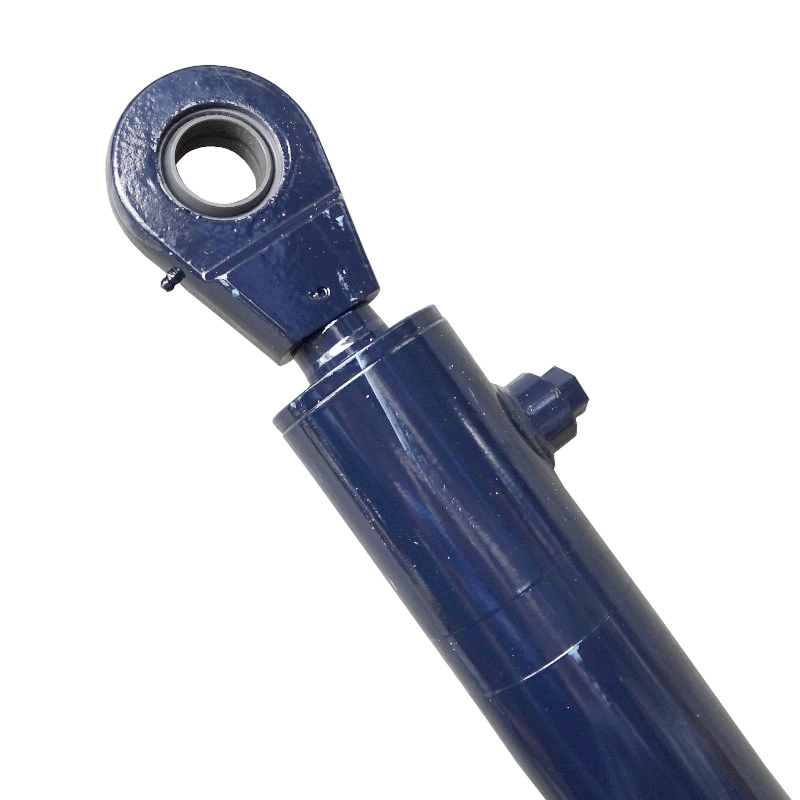

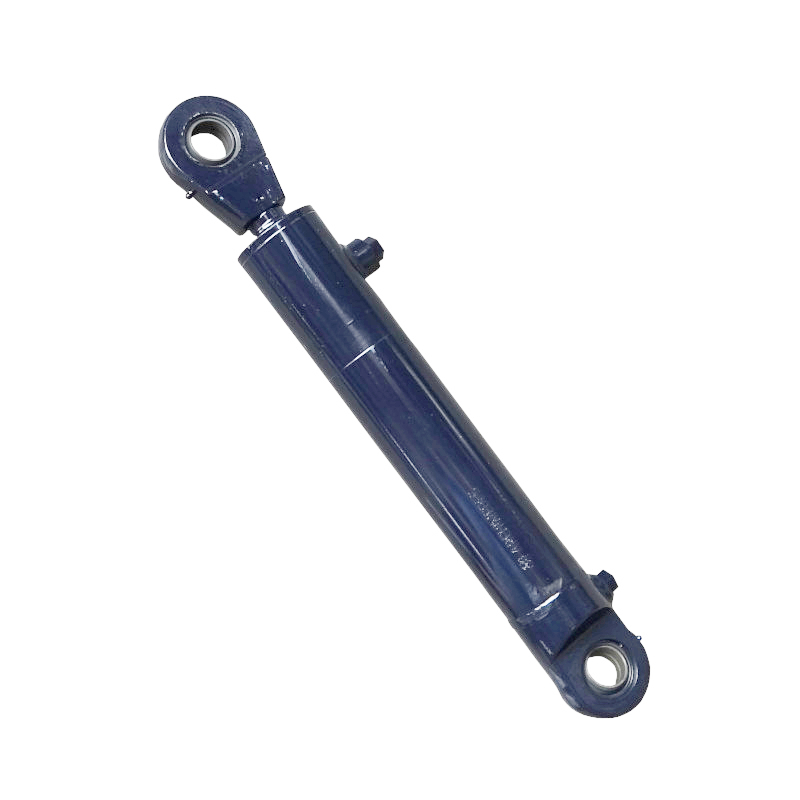

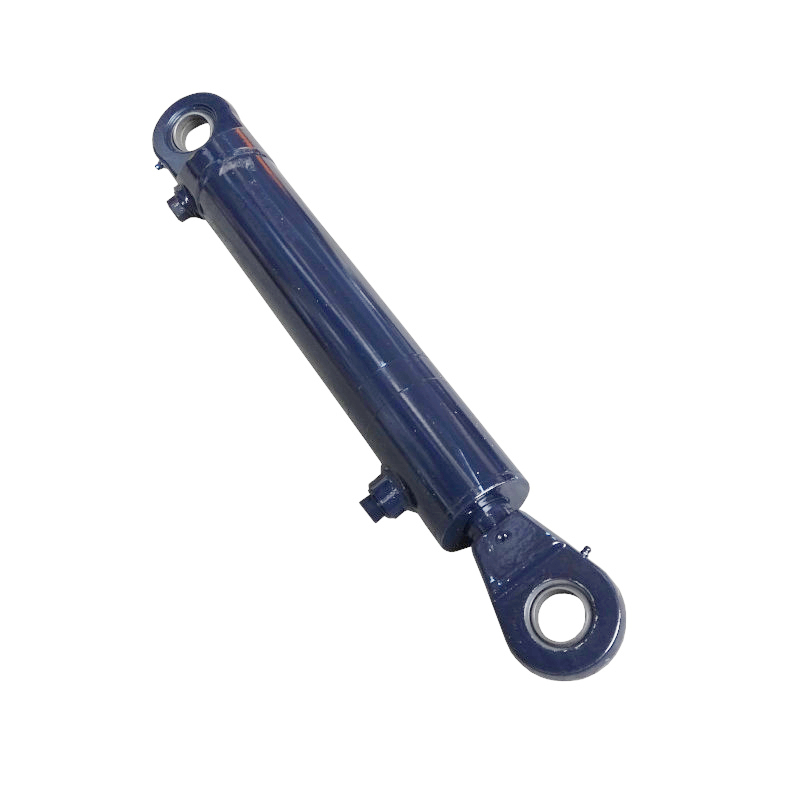

Hydraulic cylinder - ARCHIMEDES double-acting actuator

Double-acting cylinder actuator with a stroke of 320 mm. Application in cyclops, Turach 5, wood splitters and similar.

Technical data:

✔️Double-sided actuator type

✔️Actuator stroke (extension) 320mm

✔️Piston rod diameter 45mm

✔️Ear diameter 40mm

✔️Cylinder diameter (internal) 80mm

✔️Cylinder diameter (external) 92mm

✔️Compound actuator length 670mm

✔️Length of the unfolded cylinder 990mm

✔️Connection thread M27x2

Application:

✔️Hydraulic systems of agricultural machines and tractors

Catalog number:

✔️ CJ2F80 /45/320A

Comparison numbers:

✔️ CJ2F80/45/320
✔️W-SH2P45H320Z
✔️SH2P45H320Z

Product features:

✔️The highest quality
✔️Manufacturer Archimedes

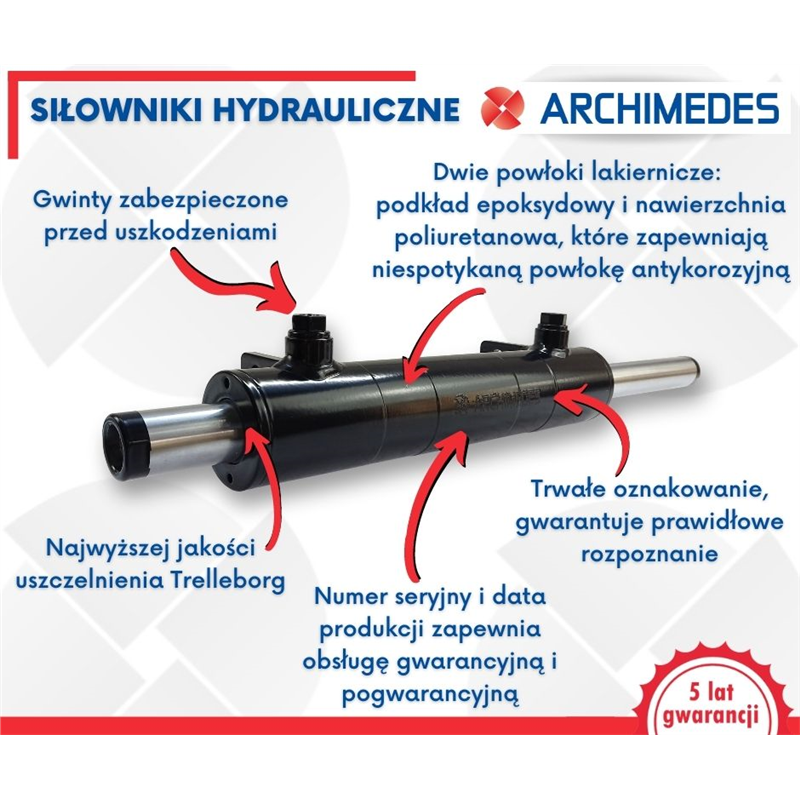

ARCHIMEDES hydraulic cylinders

Did you know that there is no room for compromise in the production of Archimedes cylinders ✔️ The bushings are made by diamond-blasting, the ball joints are forged and the seals are used the top-shelf ones – Trelleborg. We secure all threads to prevent them from being damaged during transport or storage. And that's not all;

Our cylinders are the only ones with two paint coatings - an epoxy primer and a polyurethane surface - this ensures an extremely durable and anti-corrosion coating not found in other cylinders!

At the end of the production process, we test the cylinder under a pressure of 250Mpa and if everything is in line with our highest requirements, we give it a serial number, stamp the production date and send it to the fascinating world of hydraulics.

We know almost everything about hydraulics, which is why we offer a 5-year warranty on all our products without hesitation. Without any worries.

5 lat gwarancji. Bez żadnych obaw.
