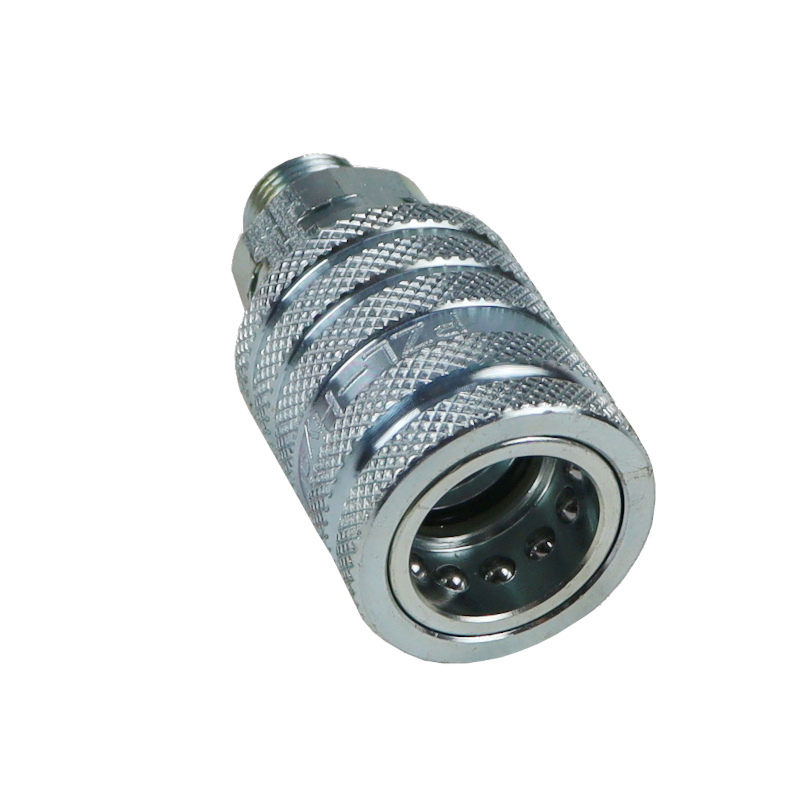

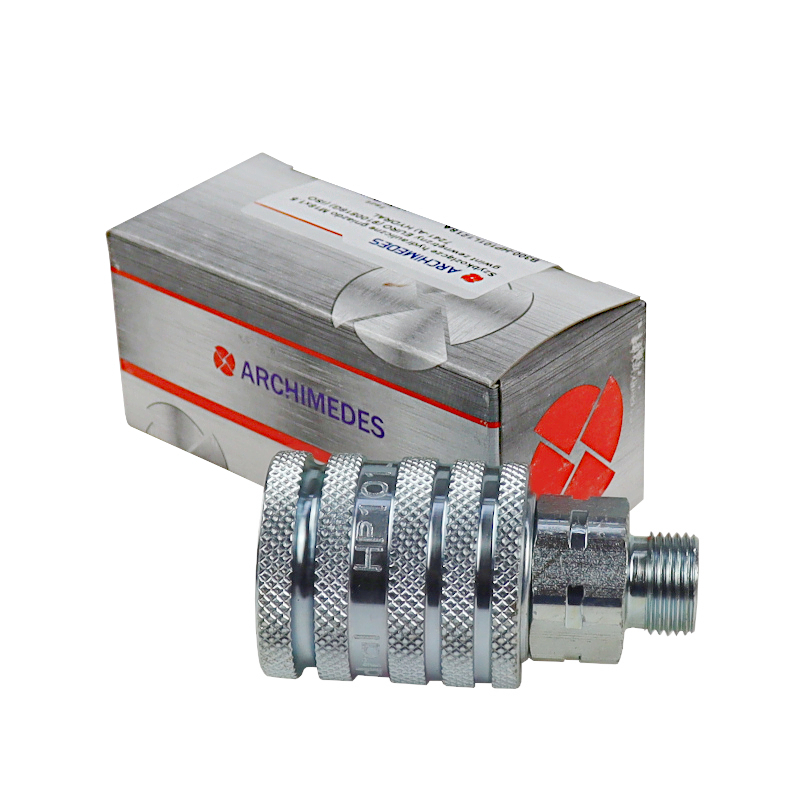

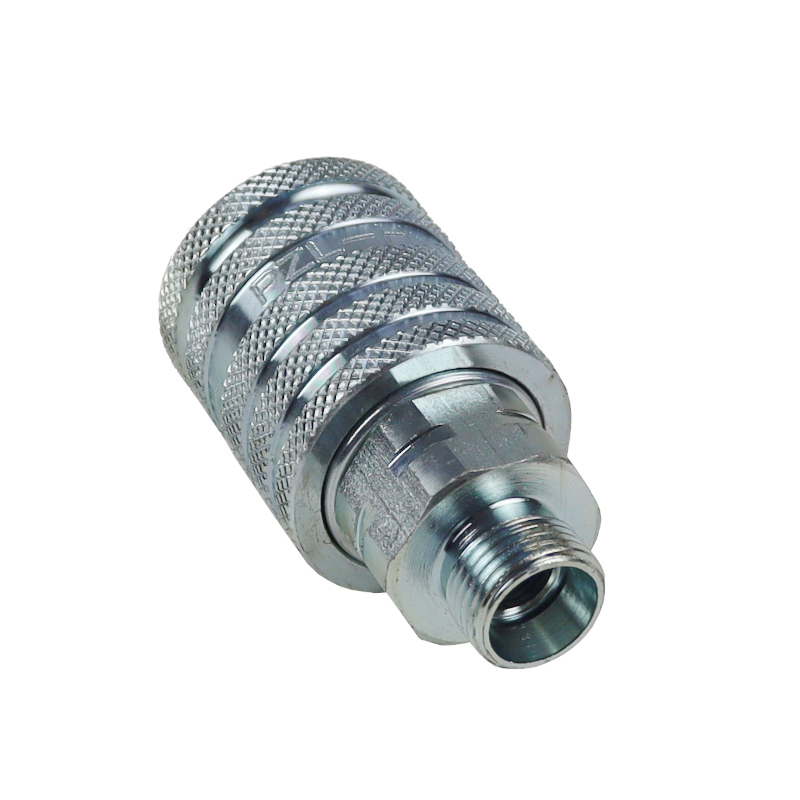

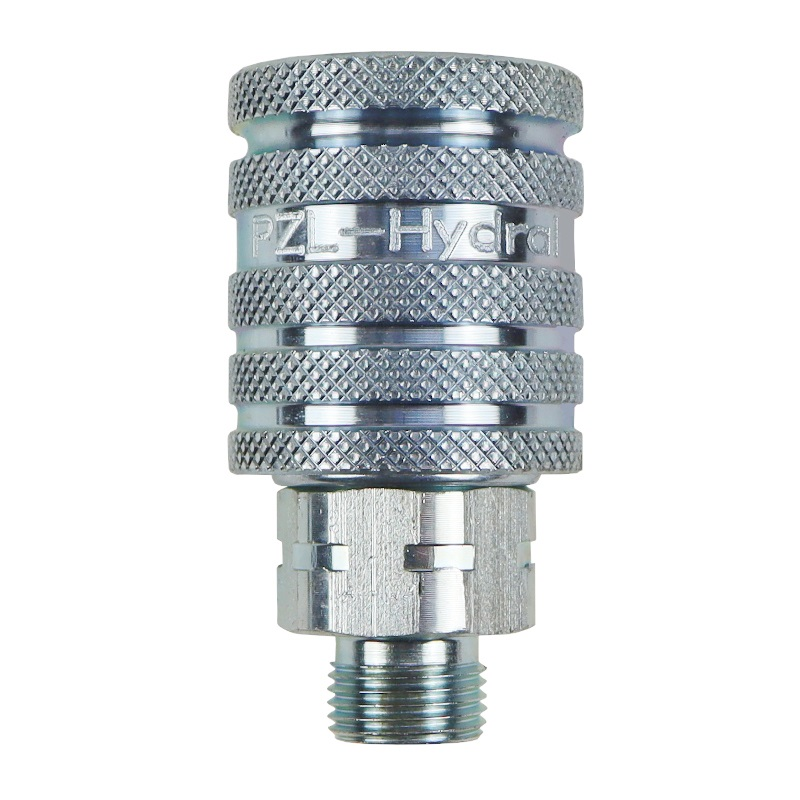

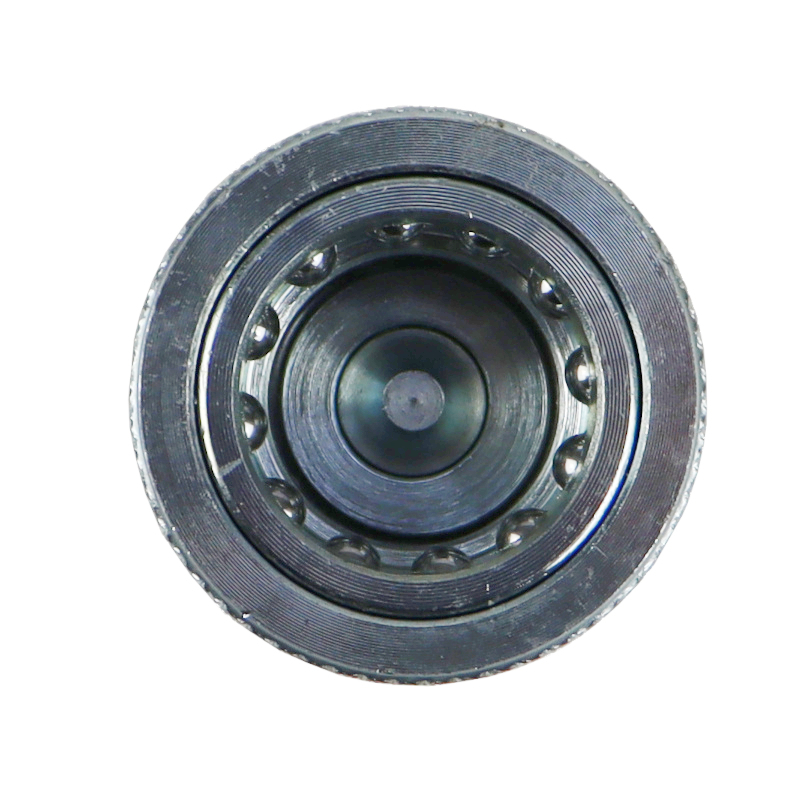

Hydraulic quick connector, socket M18x1.5, external thread EURO PUSH-PULL (9100818G) (ISO 7241-A) HYDRAL PREMIUM

M18x1.5 Hydral Premium hydraulic connector socket

Hydral Premium quick connectors of the PUSH PULL type differ from others on the market in that they are dismantled and repairable.

Technical data:

✔️ Thread: M18x1.5 external
✔️ Total length 73mm
✔️ Valve type: IP with poppet valve
✔️ Standard: ISO 7241-1 series "A"
✔️ Pressure: up to 350 bar
✔️ Material: galvanized carbon steel
✔️ Operating temperature: NBR -20°C/+100°C
✔️ Flow: up to 200 l/min
✔️ Connection system: Push-Pull
✔️ Residual pressure - connection: impossible; disconnection: impossible
✔️ Seal: NBR, VITON

Application:

✔️Universal use in hydraulics

Catalog number:

✔️ HP101L1218PH2

Comparison numbers:

✔️ HP101L1218PH
✔️ WIAM18MZ-PP
✔️ B300-HP101L1218PA
✔️ HFSMC7612-M 18X1.5 12L

Alternative names:

✔️Quick connector
✔️Female connector

HYDRAL QUICK CONNECTORS

The highest-class HYDRAL hydraulic quick connectors are connectors in the Euro ISO 7241 Series A standard. We present quick connectors that meet the high requirements of customers from many industries. The use of HYDRAL solutions enables easy, safe and durable, and above all, instantaneous connection of several hydraulic lines of different sizes and applications at the same time.✔️

Using quick connectorsHYDRALyou have proper flow of the working fluid and a guarantee of a safe connection.

HYDRAL connectors- tailored to your needs.
