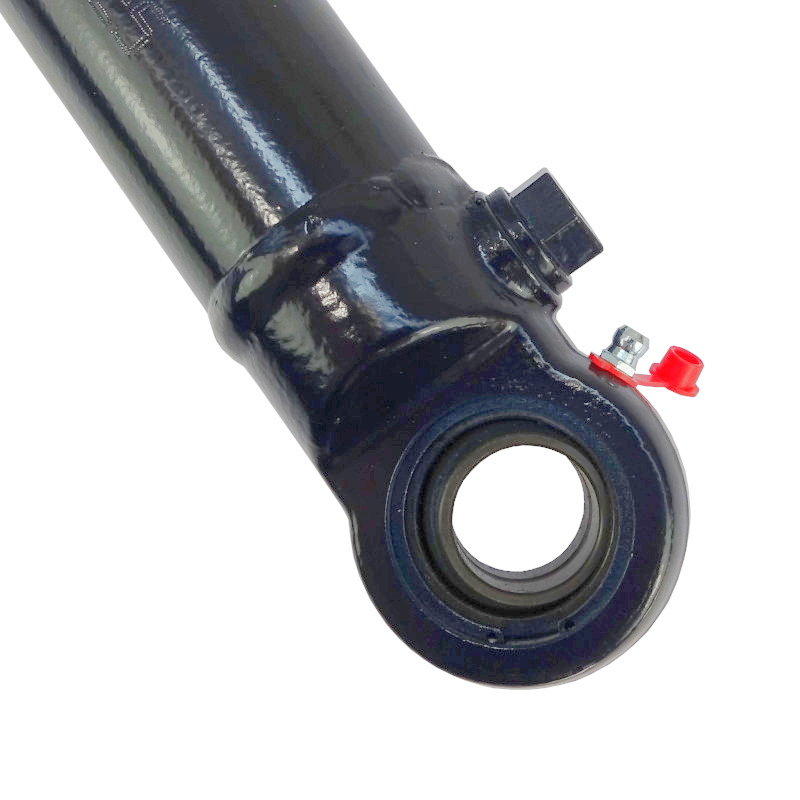

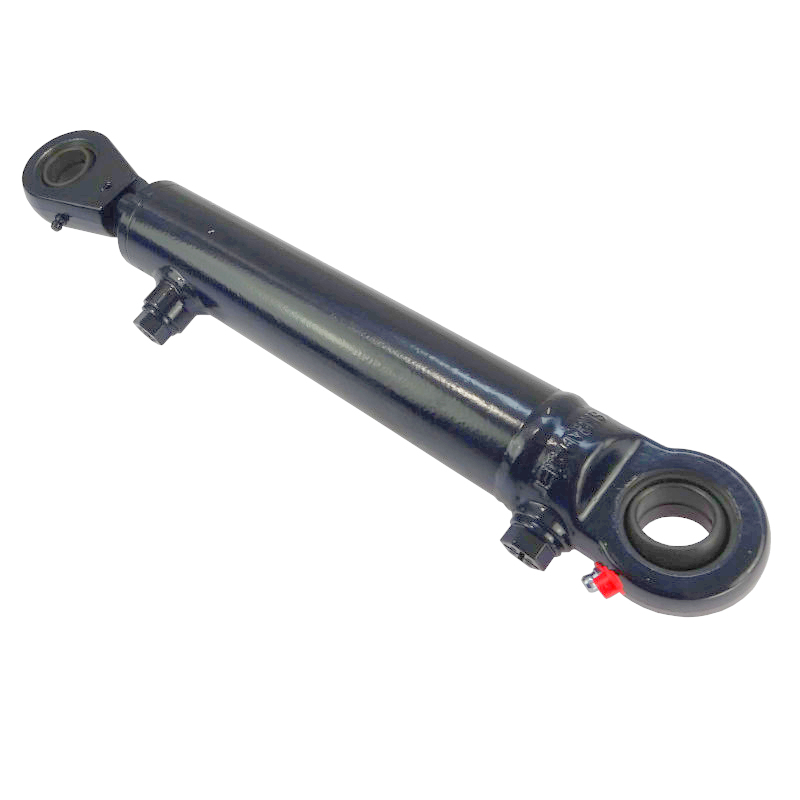

Hydraulic cylinder - double-acting actuator CJ2F-4022160 ARCHIMEDES

Double-sided hydraulic cylinder (cylinder) ARCHIMEDES

BIZON Z-056 Z-058 double-sided hydraulic cylinder for continuously variable transmission 2xM16x1.5 320 - 480 mm

Technical data:

✔️Length range (between hole axes) - from 320 to 480 mm
✔️Piston diameter - 22 mm
✔️Eye - 22mm
✔️Type - double acting
✔️Ball inner diameter - 25 mm
✔️Entry - M16x1.5
✔️3.28kg

Application:

✔️Bizon Z-058, Z-056 combine harvesters
✔️Universal use

Catalog number:

✔️ SH2P22H160ZA

Comparison numbers:

✔️ CJ2F-40/22/160
✔️ 687CJ24022160
✔️ 5040/99-514/0| ||✔️ 5040995140
Product features:

✔️

Highest quality✔️
Manufacturer ArchimedesARCHIMEDES hydraulic cylinders

Did you know that in the production of Archimedes actuators there is no room for any compromises ✔️ The bushings are made using the diamond-plating method, the ball joints are forged, and the sealants are from the highest quality - Trelleborg. We secure all threads to prevent them from being damaged during transport or storage. And that's not all;

Our cylinders are the only ones with two paint coatings - an epoxy primer and a polyurethane surface - this ensures an extremely durable and anti-corrosion coating not found in other cylinders!

At the end of the production process, we test the cylinder under a pressure of 250Mpa and if everything is in line with our highest requirements, we give it a serial number, stamp the production date and send it to the fascinating world of hydraulics.

We know almost everything about hydraulics, which is why we offer a 5-year warranty on all our products without hesitation. Without any worries.

O hydraulice wiemy prawie wszystko, dlatego bez wahania na wszystkie nasze produkty dajemy

5 lat gwarancji. Bez żadnych obaw.
