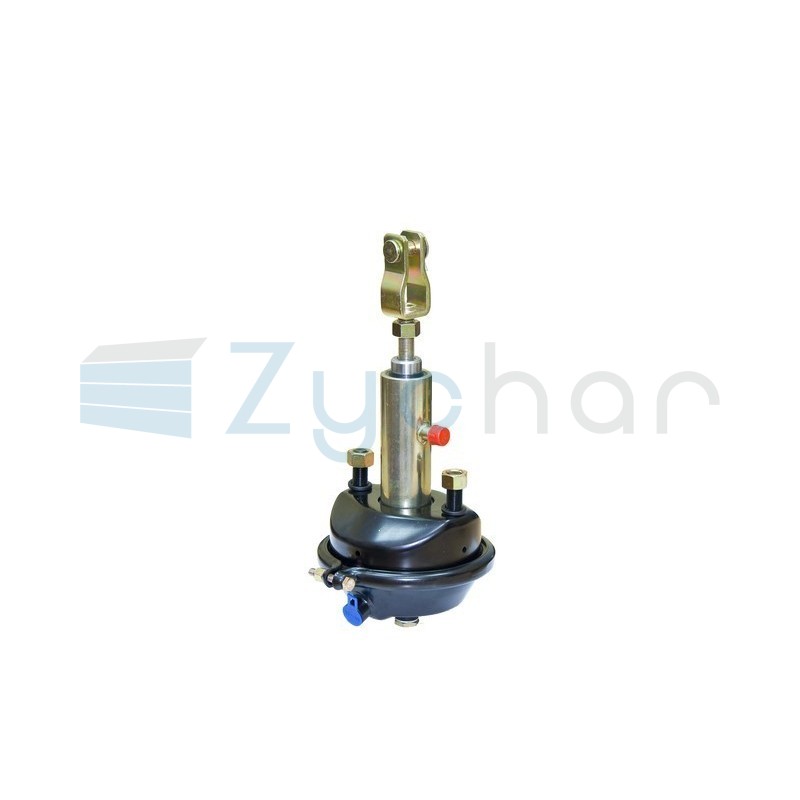

Hydraulic-pneumatic brake cylinder T20-30

Hydraulic-pneumatic brake cylinder T20-30

• Pressing force at 100 bar: 7070 N
• Pressing force at 6.5 bar: 8387 N
• Piston rod Ø (mm): 30
• integrated spring tension|| |short response time upon impact
• ready for immediate use
• consists of:
• brake cylinder
• fork
• connection: 3/8"BSP
• max. working pressure: 250bar|| |rated pressure: 200bar
• surface treatment galvanized / powder-coated
• connection M16x1.5 (2x)
• pin diameter: 14mm
• stroke: 75mm
• - Combination of a pneumatic, standard brake cylinder and an actuator single-acting hydraulic system.
• Benefits

- Suitable for hydraulic and pneumatic control of the braking axle
Application

- For hydraulic and pneumatic braking of trailers without external spring suspension

Properties

- Integrated tension spring loaded

- Short reaction time upon impact

- Ready for immediate use

Consists of:

- Brake cylinder
- Fork

Connection: 3/8"BSP

Max . working pressure: 250bar

Rated pressure: 200bar
Surface treatment Galvanized / powder coated
Connection M16x1.5 (2x )
Pin diameter: 14mm
Stroke: 75mm
Średnicy bolca: 14mm
Skok: 75mm
