Siłownik hamulcowy hydrauliczno-pneumatyczny T24-25 zoom_in

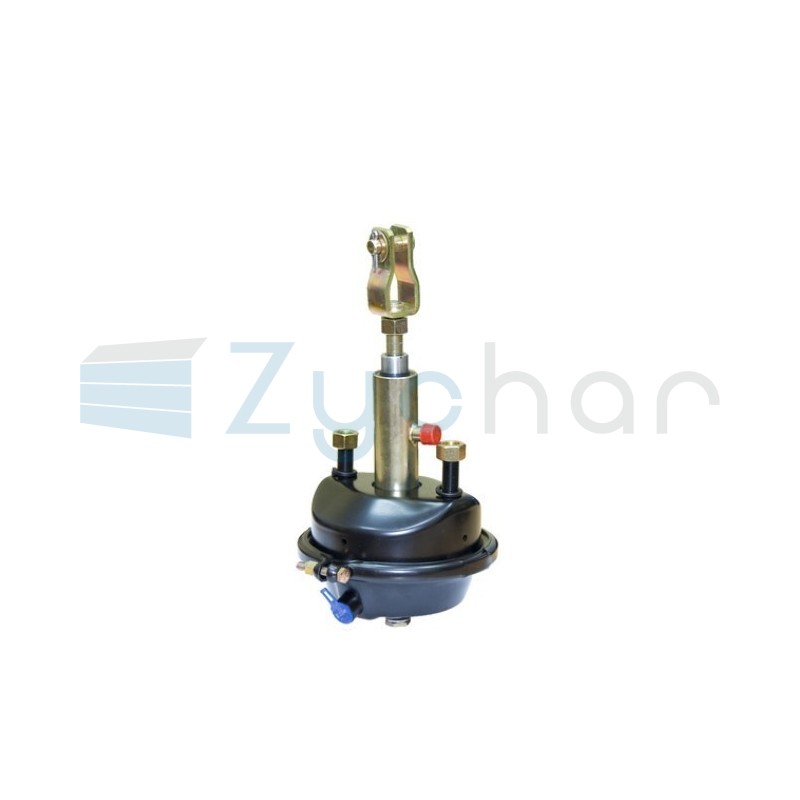

Hydraulic-pneumatic brake cylinder T24-25

Index: 66782000415

Please note

Hydraulic-pneumatic brake cylinder

Article no.: 66782000415

Comparator no.: T24-25

€59.17
VAT included
€59.17 gross
€48.11 net
error
Product is temporarily unavailable Notify me when available
  You can also order by phone

Tel: +48 570 501 200

  Shipping

Fast shipping



Safely packed

  14-day return form for contract withdrawal.

Returns address:
Hedwiżyn 119
23-400 Biłgoraj

  Complaint form

Fill out the form



GPSR Information: Product placed on the EU market before 13/12/2024

Description

Hydraulic-pneumatic brake cylinder T24-25

  • Push force at 100 bar: 4909 N
  • Push force at 6.5 bar: 10064 N
  • Piston rod Ø (mm): 25
  • Comparison no.: T24- 25
  • Weight: 5.30 kg

- Combination of a standard pneumatic brake cylinder and a single-acting hydraulic cylinder.

- Suitable for hydraulic and pneumatic control of braking axles

- For hydraulic and pneumatic braking of trailers without external spring cushioning

- Integrated spring tension

- Short reaction time on impact

- Ready for immediate use

Consists of:

- Brake cylinder

- Fork


Connection : 3/8"BSP
Max. working pressure: 250bar
Rated pressure: 200bar
Surface treatment Galvanized / powder coated
Connection M16x1.5 (2x )
Pin diameter: 14mm | || Stroke: 65mm
Skok: 65mm

Product Details

66782000415

Specific References

MPN
66782000415
