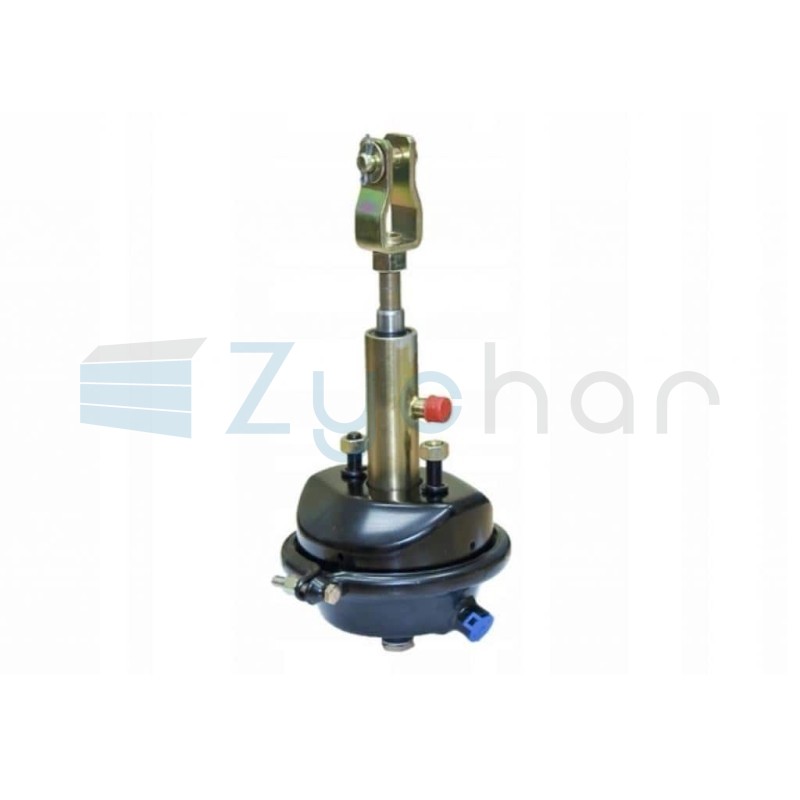

Siłownik hamulcowy hydrauliczno-pneumatyczny T16-20 zoom_in

Hydraulic-pneumatic brake cylinder T16-20

Index: SHHPT16-20

Please note

Hydraulic-pneumatic brake cylinder Article no.: SHHPT16-20 Comparison no.: T16-20

€51.04
VAT included
€51.04 gross
€41.50 net
  You can also order by phone

Tel: +48 570 501 200

  Shipping

Fast shipping



Safely packed

  14-day return form for contract withdrawal.

Returns address:
Hedwiżyn 119
23-400 Biłgoraj

  Complaint form

Fill out the form



GPSR Information: Product placed on the EU market before 13/12/2024

Description

Hydraulic-pneumatic brake cylinder T16-20

  • pressing force at 100 bar: 3142 N
  • pressing force at 6.5 bar: 6709 N
  • piston rod Ø (mm): 20
  • comparison no.: T16- 20
  • max. working pressure: 250bar
  • rated pressure: 200bar
  • surface treatment Galvanized / powder-coated
  • connection M16x1.5 (2x)
  • pin diameter: 14 mm
  • pitch: 75mm
  • screw spacing mounting: 76mm
  • mounting with Ø 12mm screws
  • integrated spring tension short response time on impact ready for immediate use
  • weight: 4.32 kg

Consists of:

  • brake cylinder

  • range

Product Details

SHHPT16-20

Specific References

MPN
SHHPT16-20
